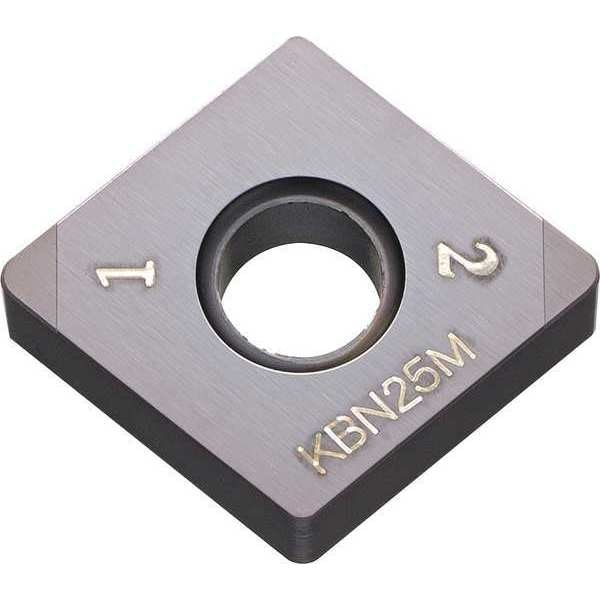

Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNGA |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | KBN25M |
| Corner Radius | 2 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | CNGA120408-S01225-ME |
| Workpiece Compatibility | Hardened (H) |
| Relief Angle | 0 Degrees |
| Non Ferrous (N) Compatibility | No |
| Mounting Style | Rigid Clamp |
| Cast Iron (K) Compatibility | No |
| ANSI Number | CNGA432S00525ME KBN25M |
| Coating | Megacoat |
| Insert Thickness | 0.188 in |
| Stainless (M) Compatibility | No |
| Hardened (H) Compatibility | Yes |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | No |
| For Use With | Mfr. No. DCLNR/L 12-4B, DCLNR/L 16-4D, MCLNR/L 12-4B, MCLNR/L 16-4D, PCLNR/L 12-4B, PCLNR/L 16-4D, A-DCLNR/L 4, S-PCLNR/L 4 |
| Mounting Hole Dia. | 0.203 in |
| No. of Edges | 2 |
| Nose Radius | 0.0313 in |
| Super Alloy (S) Compatibility | No |
| Measurement System | Fractional Inch |
| Cutting Application | Turning |
| Clearance Angle | 0 deg |
| Primary Material Application | Hardened Steel |
| Primary Material Application ISO Code | H |
| Secondary Material Application ISO Code | P |
| Material - Machining | CBN |
| Number of Cutting Edges | 2 |
| Finish - Machining | Megacoat Nano |
| Features | Heat Resistant |
| ANSI Code | CNGA432S00525ME KBN25M |
| Thickness | 3 |
| Included Angle | 80 Degrees |
| Chip-Breaker Code | ME |
| Shape | Rhombic |
| Insert Holding Type | Screw |
| Secondary Material Application | Steel |
| Manufacturer Grade | KBN25M |
| Material | CBN |
| Package Quantity | 1 |
