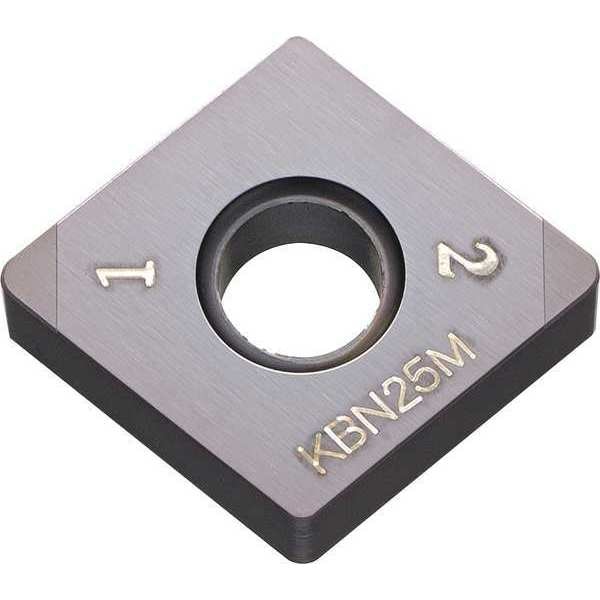

Diamond Turning Insert, Diamond, 4, CNGA, 3, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNGA |
| Inscribed Circle | 4 |
| Insert Size | 433 |
| Chip-Breaker | Yes |
| Grade | KBN35M |
| Corner Radius | 3 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Negative |
| ISO Number | CNGA120412S01730ME-T |
| ANSI Number | CNGA433S00730METKBN35M |
| Cutting Direction | Neutral |
| Relief Angle | 0 Degrees |
| No. of Edges | 2 |
| Insert Thickness | 0.188 in |
| Workpiece Compatibility | Hardened (H) |
| Steel (P) Compatibility | No |
| For Use With | Mfr. No. DCLNR/L 12-4B, DCLNR/L 16-4D, MCLNR/L 12-4B, MCLNR/L 16-4D, PCLNR/L 12-4B, PCLNR/L 16-4D, A-DCLNR/L 4, S-PCLNR/L 4 |
| Nose Radius | 0.0469 in |
| Coating | Megacoat |
| Non Ferrous (N) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Hardened (H) Compatibility | Yes |
| Mounting Style | Rigid Clamp |
| Super Alloy (S) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Stainless (M) Compatibility | No |
| Shape | Rhombic |
| Manufacturer Grade | KBN35M |
| Measurement System | Fractional Inch |
| Cutting Application | Turning |
| Insert Holding Type | Screw |
| Material - Machining | CBN |
| Included Angle | 80 Degrees |
| Features | Wear Resistant |
| Primary Material Application | Hardened Steel |
| Primary Material Application ISO Code | H |
| Clearance Angle | 0 deg |
| Number of Cutting Edges | 2 |
| ANSI Code | CNGA433S00730METKBN35M |
| Finish - Machining | Megacoat Nano |
| Thickness | 3 |
| Chip-Breaker Code | ME |
| Material | CBN |
| Package Quantity | 1 |
