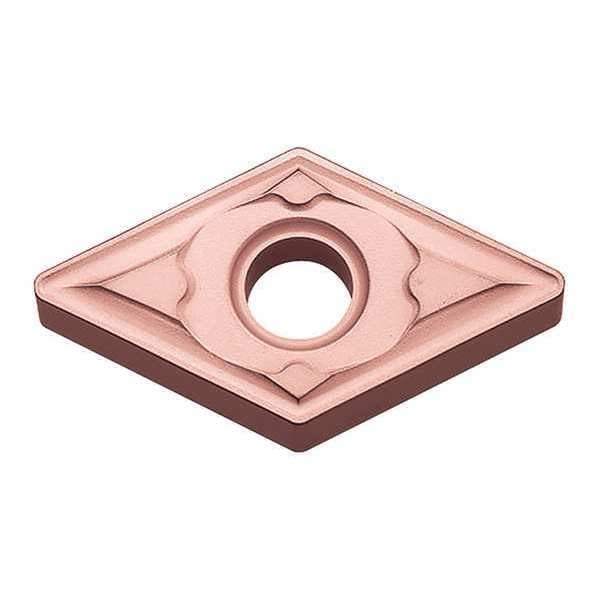

Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DNMG |
| Inscribed Circle | 4 |
| Insert Size | 432 |
| Chip-Breaker | Yes |
| Grade | CA315 |
| Corner Radius | 2 |
| Insert Material | Carbide |
| Insert Application | Roughing |
| Rake | Negative |
| ISO Number | DNMG150408C |
| Mounting Style | Clamp |
| ANSI Number | DNMG432C-CA315 |
| No. of Edges | 4 |
| Stainless (M) Compatibility | No |
| Cutting Direction | Neutral |
| Nose Radius | 0.0313 in |
| Hardened (H) Compatibility | No |
| Coating | Al2O3, TiCN |
| Insert Thickness | 3/16 in |
| Super Alloy (S) Compatibility | No |
| Relief Angle | 0 Degrees |
| Steel (P) Compatibility | No |
| For Use With | Toolholders, Boring Bars |
| Workpiece Compatibility | Cast Iron (K) |
| Cast Iron (K) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Mounting Hole Dia. | 0.203 in |
| Cutting Application | Turning |
| Chip-Breaker Code | C |
| Chip-Breaker Style | Ground, On Two Sides |
| Primary Material Application | Cast Iron |
| Secondary Material Application ISO Code | K |
| Features | High Efficiency |
| Shape | Rhombic |
| Clearance Angle | 0 deg |
| Primary Material Application ISO Code | K |
| Finish - Machining | TiCN+Al2O3+Ti |
| ANSI Code | DNMG432C |
| Insert Holding Type | Screw |
| Number of Cutting Edges | 4 |
| Thickness | 3 |
| Material - Machining | Carbide |
| Secondary Material Application | Cast Iron |
| Measurement System | Fractional Inch |
| Included Angle | 55 Degrees |
| Manufacturer Grade | CA315 |
| Material | Carbide |
| Package Quantity | 1 |
