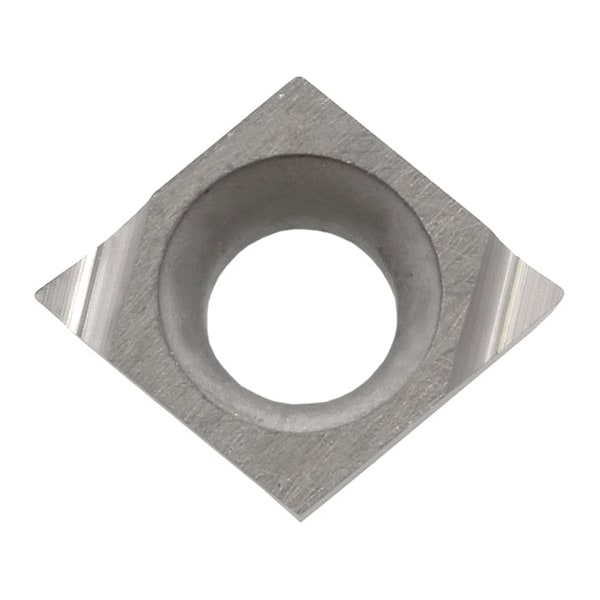

Diamond Turning Insert, Diamond, 4.30mm, 0.10mm
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 4.3 mm |
| Chip-Breaker | Yes |
| Corner Radius | 0.1 mm |
| Rake | Positive |
| ISO Number | CCGT040101L-F |
| Cutting Direction | Left Hand |
| Thickness | 1.8 mm |
| Features | For Stable Cutting of Cast Iron, Non-Ferrous Materials, Non-Metals and Titanium Alloys |
| Cutting Edge | Sharp Edge |
| Material - Machining | Carbide |
| General Shape | Diamond |
| Manufacturer Grade | KW10 |
| Primary Material Application ISO Code | N |
| Number of Cutting Edges | 2 |
| Cutting Application | Boring, External Turning, Facing, Internal Facing, Sub-Spindle Turning |
| Insert Holding Type | Screw |
| ANSI Code | CCGT141102LF |
| Finish - Machining | Bright |
| Chip-Breaker Code | F |
| Shape | Diamond |
| Through Hole Inside Dia. | 0.0906 in |
| Clearance Angle | 7 deg |
| Chip-Breaker Style | Finishing |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Measurement System | Metric |
| Included Angle | 80 Degrees |
| Material Grade - Machining | WC-Co |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Package Quantity | 1 |
