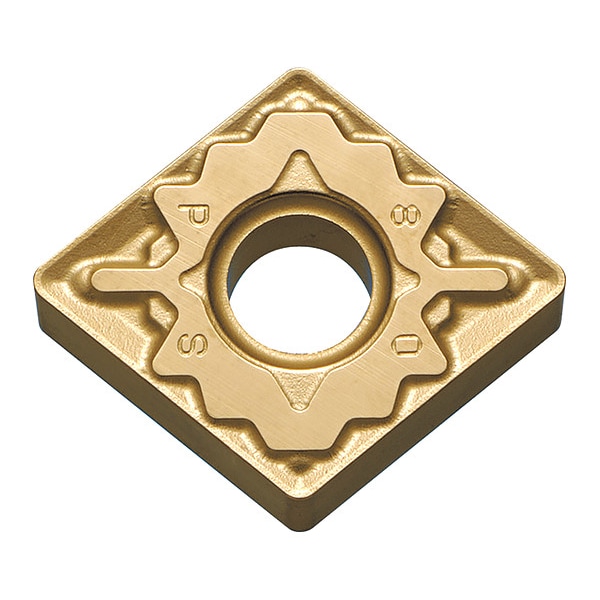

Diamond Turning Insert, Diamond, 5, 4
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Inscribed Circle | 5 |
| Chip-Breaker | Yes |
| Corner Radius | 4 |
| Rake | Negative |
| ISO Number | CNMG160616PS |
| Cutting Direction | Neutral |
| Features | Thickened Alumina with Good Thermal Resistance (Twice as Thick as Conventional Coating) and Specialized Post-Coating Process Prevents Adhesion |
| Thickness | 4 |
| General Shape | Diamond |
| ANSI Code | CNMG544PS |
| Insert Holding Type | Screw |
| Number of Cutting Edges | 4 |
| Finish - Machining | TiCN+Al2O3+TiN |
| Material Grade - Machining | Micro Columnar Coating Structure |
| Hole Type | Straight Hole |
| Shape | Diamond |
| Through Hole Inside Dia. | 1/4 in |
| Measurement System | Fractional Inch |
| Coating Process | CVD |
| Primary Material Application | Steel |
| Chip-Breaker Style | Medium Roughing |
| Clearance Angle | 0 deg |
| Manufacturer Grade | CA025P |
| Material - Machining | Carbide |
| Chip-Breaker Code | PS |
| Primary Material Application ISO Code | P |
| Included Angle | 80 Degrees |
| Cutting Application | Boring, External Turning, Facing, General to Interrupted Cutting, Internal Facing |
| Package Quantity | 1 |
