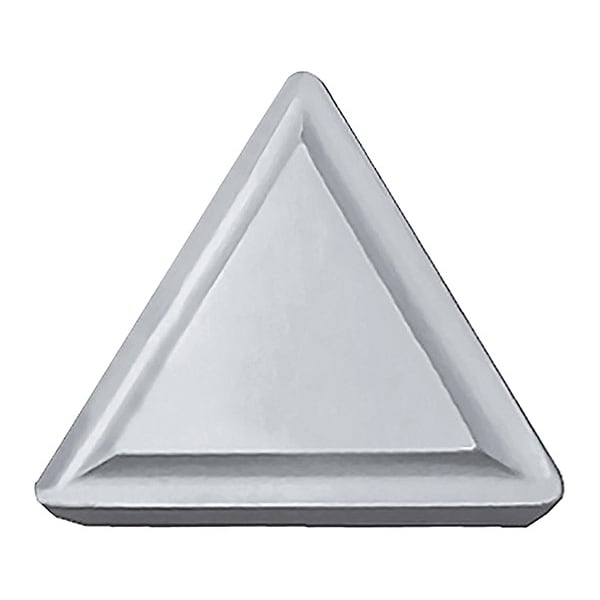

Diamond Turning Insert, Triangle, 1.8, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Triangle |
| Inscribed Circle | 1.8 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Positive |
| ISO Number | TPMR090202G |
| Cutting Direction | Neutral |
| Features | General Purpose Cermet with Superior Wear Resistance and Toughness |
| Thickness | 1.5 |
| Shape | Triangle |
| Secondary Material Application ISO Code | M |
| Manufacturer Grade | TN60 |
| Secondary Material Application | Stainless Steel |
| General Shape | Triangle |
| Finish - Machining | Bright |
| Insert Holding Type | Clamp |
| Chip-Breaker Code | G |
| Material - Machining | Cermet |
| Number of Cutting Edges | 3 |
| Material Grade - Machining | TiCN+NbC Component |
| Cutting Application | Back Boring, Boring, Copying, External Turning, Internal Facing |
| Included Angle | 60 Degrees |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| Hole Type | No Hole |
| ANSI Code | TPMR181505G |
| Measurement System | Fractional Inch |
| Clearance Angle | 11 deg |
| Package Quantity | 1 |
