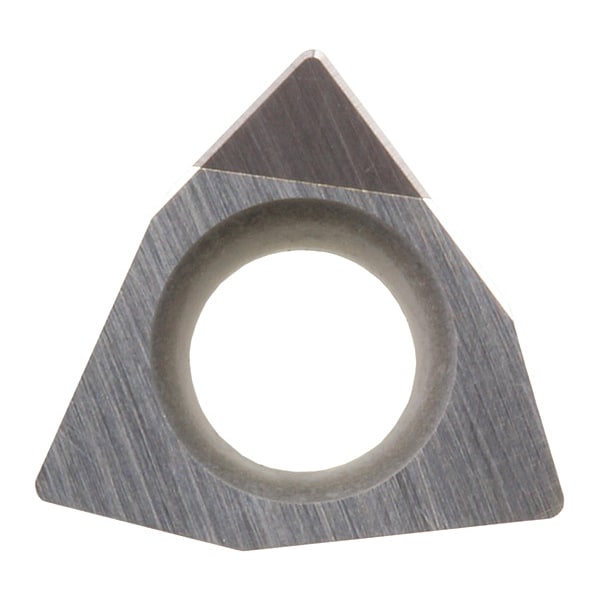

Diamond Turning Insert, Trigon, 3/16 in, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Inscribed Circle | 3/16 in |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Positive |
| ISO Number | WBGW080202T00815L-SE |
| Cutting Direction | Left Hand |
| Thickness | 1.5 |
| Features | For Hardened Die Steel, Heat-Resistant Megacoat |
| Shape | Trigon |
| General Shape | Trigon |
| Through Hole Inside Dia. | 0.0906 in |
| Cutting Application | Boring, Finishing, Internal Facing |
| Cutting Edge | Small Edge |
| Measurement System | Fractional Inch |
| Material - Machining | CBN |
| Finish - Machining | Megacoat |
| Primary Material Application | Hardened Steel |
| ANSI Code | WBGW151505T00315LSE |
| Included Angle | 80 Degrees |
| Insert Holding Type | Screw |
| Manufacturer Grade | KBN10M |
| Clearance Angle | 5 deg |
| Number of Cutting Edges | 1 |
| Chip-Breaker Code | SE |
| Primary Material Application ISO Code | H |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Package Quantity | 1 |
