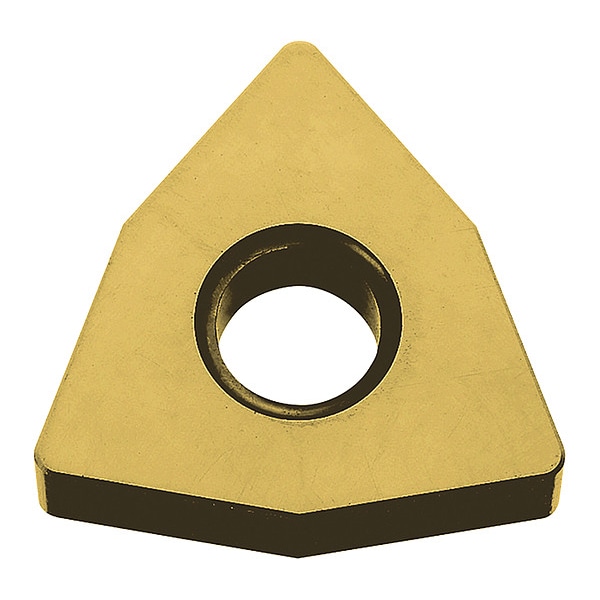

Diamond Turning Insert, Trigon, 4, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Inscribed Circle | 4 |
| Chip-Breaker | No |
| Corner Radius | 1 |
| Rake | Negative |
| ISO Number | WNGA080404T01525 |
| Cutting Direction | Neutral |
| Thickness | 3 |
| Shape | Trigon |
| Number of Cutting Edges | 6 |
| Insert Holding Type | Screw |
| Cutting Application | Boring, External Turning, Facing, Hard Turning, Internal Facing, Semi-Roughing to Finishing |
| Through Hole Inside Dia. | 0.2031 in |
| Secondary Material Application | Hardened Steel |
| Finish - Machining | TiN |
| Manufacturer Grade | A66N |
| Primary Material Application | Cast Iron |
| Clearance Angle | 0 deg |
| Hole Type | Straight Hole |
| Material Grade - Machining | Al2O3+TiC Component |
| Measurement System | Fractional Inch |
| Material - Machining | Ceramic |
| ANSI Code | WNGA431T00625 |
| Included Angle | 80 Degrees |
| Primary Material Application ISO Code | K |
| General Shape | Trigon |
| Secondary Material Application ISO Code | H |
| Package Quantity | 1 |
