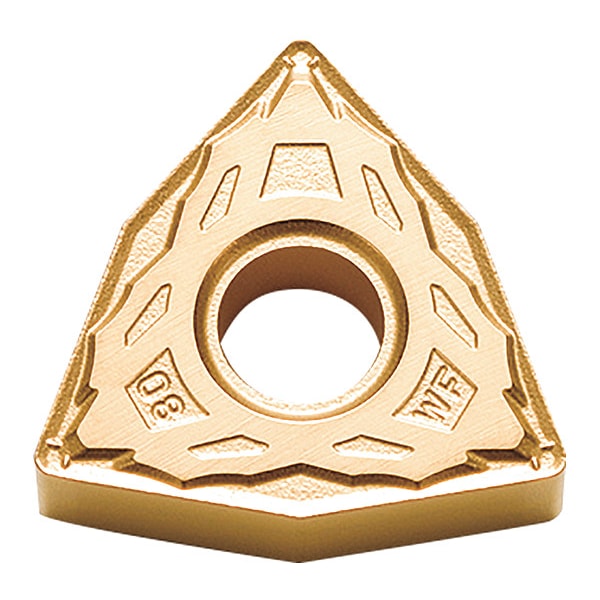

Diamond Turning Insert, Trigon, 4, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Negative |
| ISO Number | WNMG080404WF |
| Cutting Direction | Neutral |
| Features | Special Substrate and Tough Coating Film Provides High Wear and Fracture Resistance |
| Thickness | 3 |
| Shape | Trigon |
| Manufacturer Grade | CA525 |
| Clearance Angle | 0 deg |
| Finish - Machining | TiCN+Al2O3+TiN |
| Material Grade - Machining | Micro Columnar Coating Structure |
| Through Hole Inside Dia. | 0.2031 in |
| ANSI Code | WNMG431WF |
| Wiper Insert | Yes |
| Chip-Breaker Code | WF |
| Cutting Application | Boring, External Turning, Facing, Internal Facing |
| Coating Process | CVD |
| Measurement System | Fractional Inch |
| Hole Type | Straight Hole |
| Insert Holding Type | Screw |
| Number of Cutting Edges | 6 |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Included Angle | 80 Degrees |
| General Shape | Trigon |
| Chip-Breaker Style | Finishing |
| Material - Machining | Carbide |
| Package Quantity | 1 |
