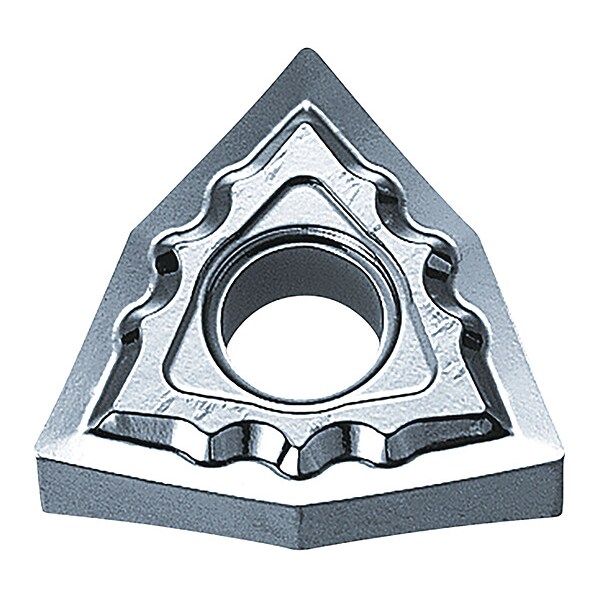

Diamond Turning Insert, Trigon, 4, 2
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Inscribed Circle | 4 |
| Chip-Breaker | Yes |
| Corner Radius | 2 |
| Rake | Negative |
| ISO Number | WNMG080408AH |
| Cutting Direction | Neutral |
| Features | For Stable Cutting of Cast Iron, Non-Ferrous Materials, Non-Metals and Titanium Alloys |
| Thickness | 3 |
| Shape | Trigon |
| Cutting Application | Boring, External Turning, Facing, Internal Facing |
| Number of Cutting Edges | 6 |
| Chip-Breaker Style | Medium Roughing |
| Through Hole Inside Dia. | 0.2031 in |
| Finish - Machining | Bright |
| General Shape | Trigon |
| Clearance Angle | 0 deg |
| Material Grade - Machining | WC-Co |
| Measurement System | Fractional Inch |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Cutting Edge | Sharp Edge |
| Included Angle | 80 Degrees |
| Insert Holding Type | Screw |
| Manufacturer Grade | KW10 |
| Hole Type | Straight Hole |
| ANSI Code | WNMG432AH |
| Chip-Breaker Code | AH |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | N |
| Package Quantity | 1 |
