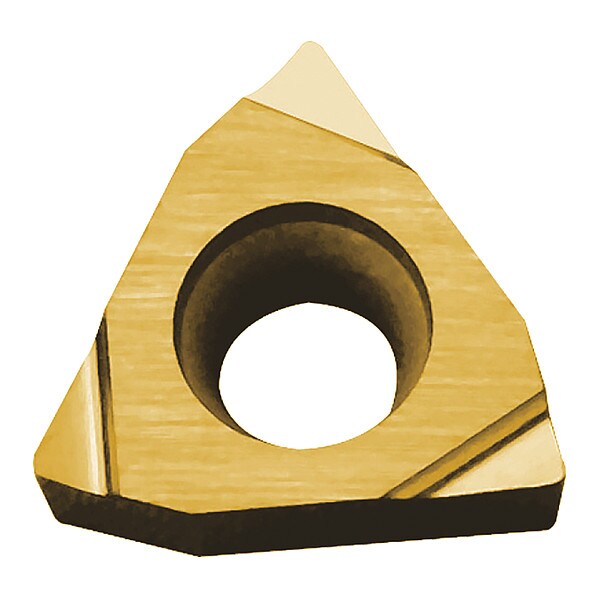

Diamond Turning Insert, Trigon, 5/32 in, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Trigon |
| Inscribed Circle | 5/32 in |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | WBET060104ML-F |
| Cutting Direction | Left Hand |
| Thickness | 1 |
| Features | Megacoat Nano for Efficient Machining with High-Quality Surface Finishes and Superior Wear and Adhesion Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish |
| Shape | Trigon |
| Finish - Machining | Megacoat Nano |
| Number of Cutting Edges | 3 |
| Insert Holding Type | Screw |
| Cutting Edge | Minus Tolerance Corner Radius; Sharp Edge |
| Manufacturer Grade | PV720 |
| Secondary Material Application ISO Code | M |
| Chip-Breaker Code | F |
| Primary Material Application ISO Code | P |
| Through Hole Inside Dia. | 0.0906 in |
| General Shape | Trigon |
| Measurement System | Fractional Inch |
| Material Grade - Machining | TiCN Component |
| Coating Process | PVD |
| Cutting Application | Boring, Internal Facing |
| Included Angle | 80 Degrees |
| ANSI Code | WBET1211MLF |
| Primary Material Application | Steel |
| Clearance Angle | 5 deg |
| Secondary Material Application | Stainless Steel |
| Material - Machining | Cermet |
| Chip-Breaker Style | Finishing |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Package Quantity | 1 |
