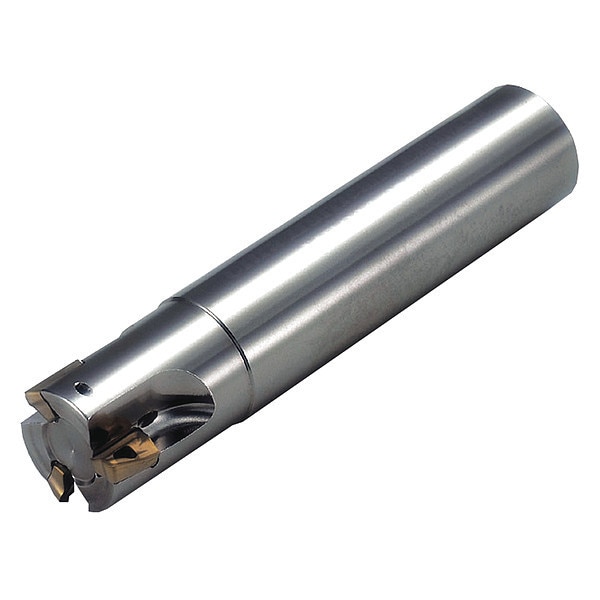

End Mills, 1.0000 dia.
| Item | Diamond Turning Insert |
|---|---|
| Depth of Cut | 0.3937 in |
| Cutting Direction | Right Hand |
| Features | 2.5 Degrees Max. Ramping Angle, Long Length Shank |
| Insert Holding Type | Screw |
| Insert Style | BDMT, BDGT |

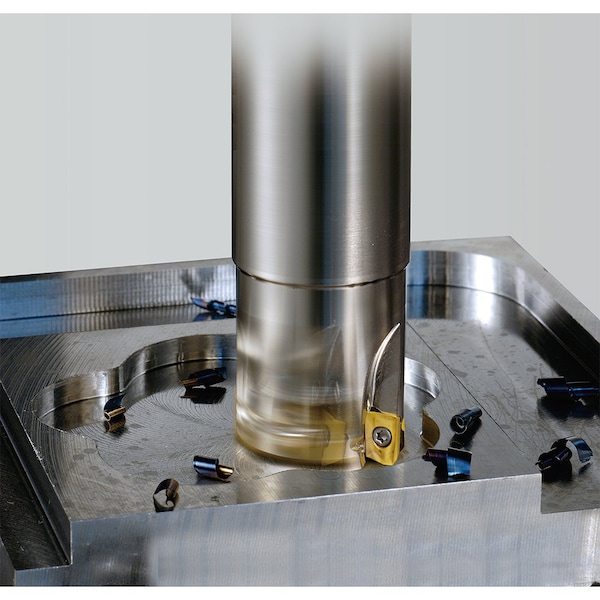

| Cutting Application | Face Milling, Helical Milling, Plunge Cutting, Ramping, Shoulder Milling, Slotting |
| ISO Number | MEC 1000-S100-6.3-11T |
| ANSI Code | MEC1000S1006311T |
| Coolant Fed | Coolant Through |
| Rake | -10 Degrees Radial, 21 Degrees Axial |
| Package Quantity | 1 |
