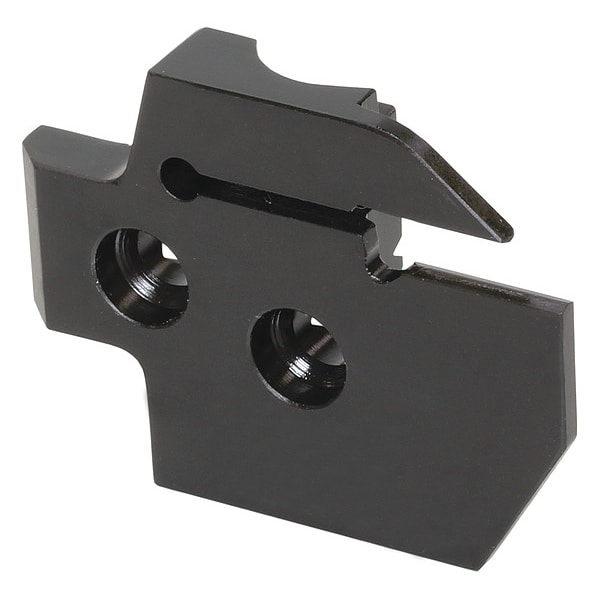

External Grooving Blade, KGDL 3T10C, External Grooving & Cut-Off Blade
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Cutting Direction | Left Hand |
| ISO Number | KGDL3T10C |

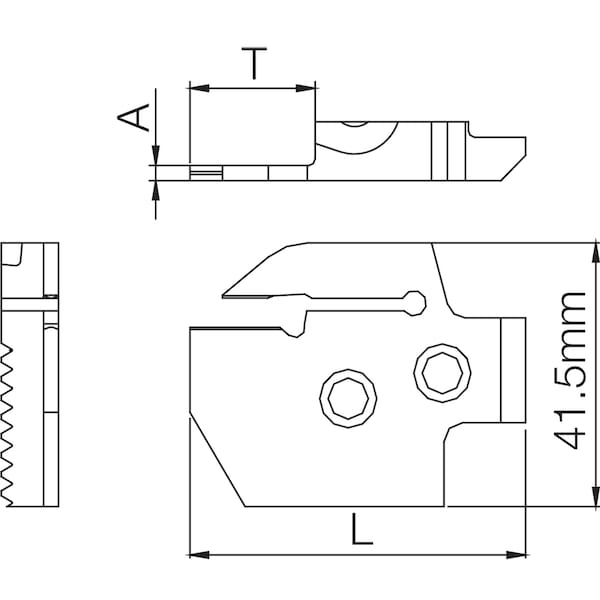

| Overall Length | 44.2 mm |
| Features | Good Chip Control, Good for High-Mix Low Volume Production by Replacing Blades, Wide Range of Chipbreakers to Cover Multiple Grooving and Cut-Off Applications |
| Max. Grooving Width | 4 mm |
| ANSI Code | KGDL3T10C |
| Depth of Cut | 10.2 mm |
| Seat Size | 2.4 mm |
| Insert Style | GDG3, GDG4, GDM3, GDM4, GDMS3, GDMS4 |

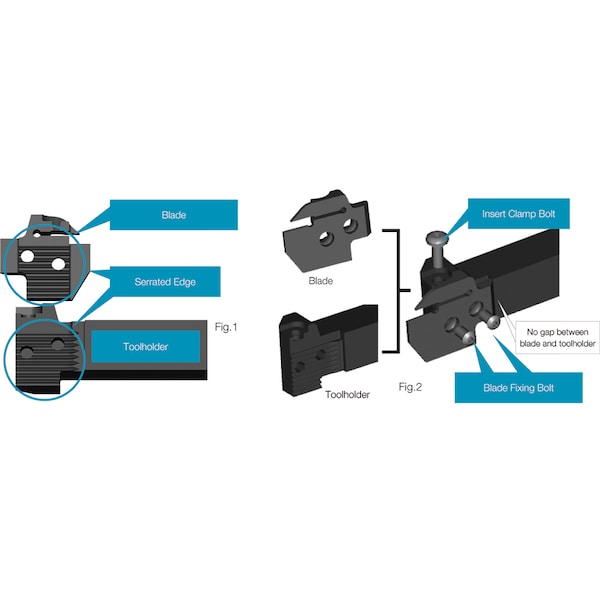

| Insert Holding Type | Screw Clamping |

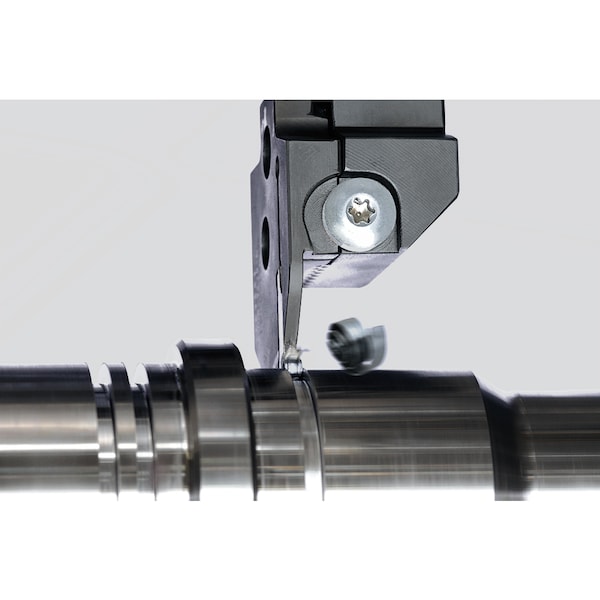

| Cutting Application | Cut-Off, Grooving |
| Cutting Location | External |
| Toolholder Style | KGD |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
