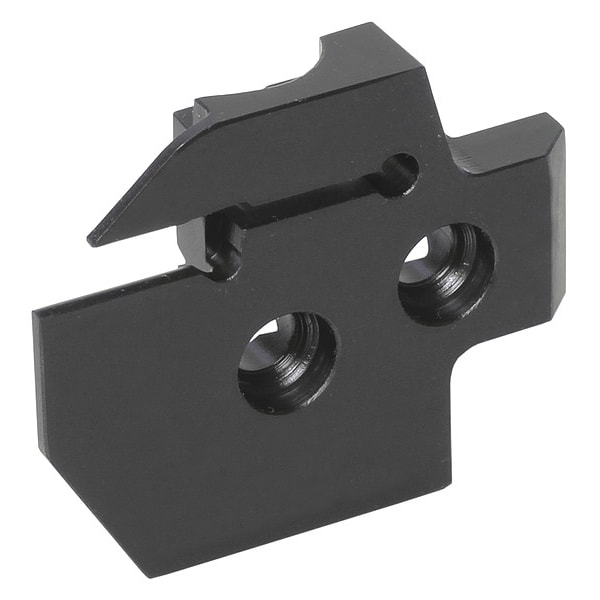

External Grooving Blade, KGDR 2T17C, External Grooving & Cut-Off Blade
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Cutting Direction | Right Hand |

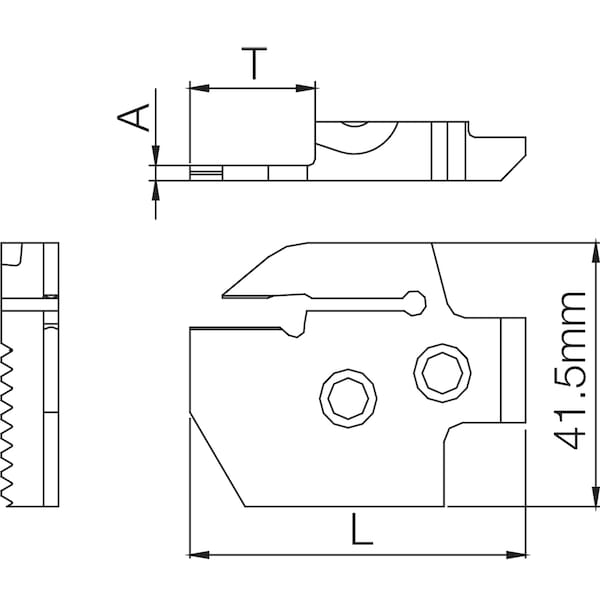

| Overall Length | 51.2 mm |
| ISO Number | KGDR2T17C |
| Features | Good Chip Control, Good for High-Mix Low Volume Production by Replacing Blades, Wide Range of Chipbreakers to Cover Multiple Grooving and Cut-Off Applications |
| Toolholder Style | KGD |
| Insert Holding Type | Screw Clamping |
| Depth of Cut | 17.2 mm |
| Insert Style | GDG3, GDM3, GDMS3, GDG2, GDM2, GDMS2 |
| Max. Grooving Width | 3 mm |
| Cutting Location | External |
| ANSI Code | KGDR2T17C |
| Coolant Fed | Non-Coolant Through |
| Seat Size | 1.7 mm |

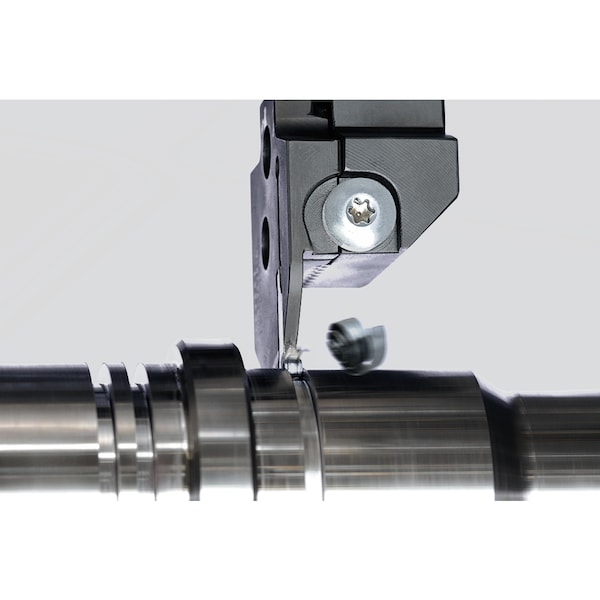

| Cutting Application | Cut-Off, Grooving |
| Package Quantity | 1 |
