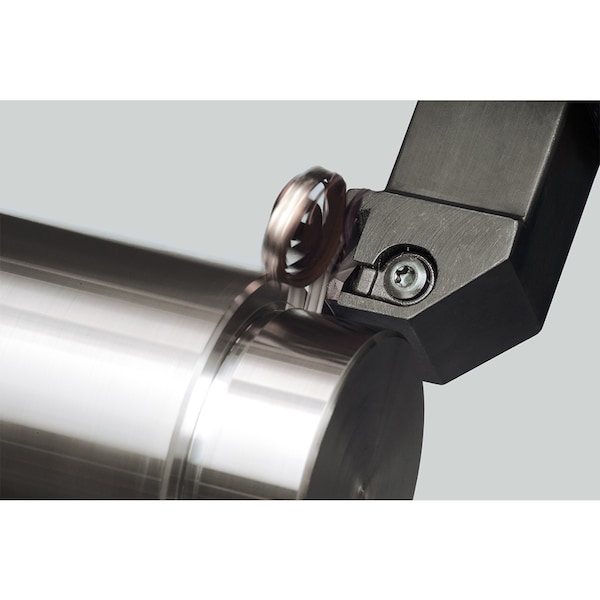

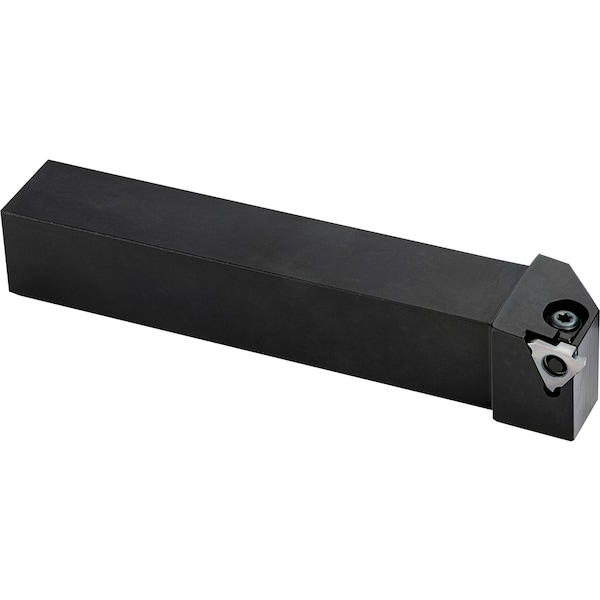

External Grooving Toolholder, KGBAL 12415
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Shank Shape | Square |

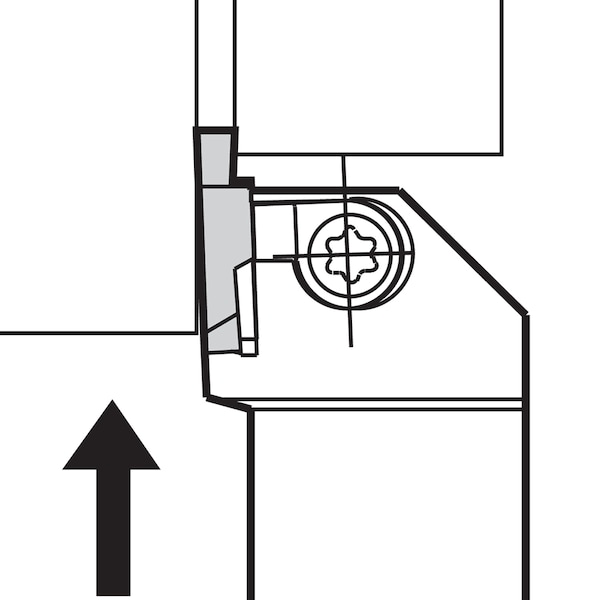

| Cutting Direction | Left Hand |
| Overall Length | 5 in |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Uses Economical Inserts with 3 Cutting Edges |
| Cutting Height | 3/4 in |
| Depth of Cut | 0.157 in |
| ANSI Code | KGBAL12415 |
| ISO Number | KGBAL12415 |
| Cutting Application | Shallow Grooving |

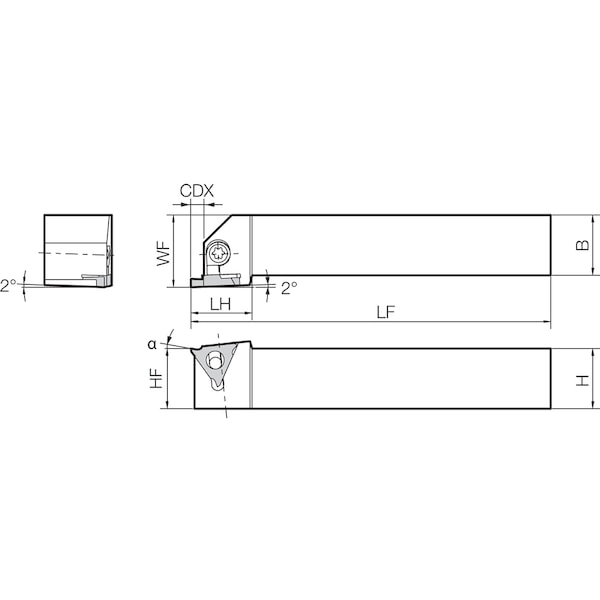

| Head Length | 1.0039 in |
| Max. Grooving Width | 0.1181 in |
| Insert Style | GBA |
| Shank Height | 3/4 in |
| Shank Material | Steel |
| Side-to-Cutting Tip | 1 in |
| Insert Holding Type | Lever Lock |
| Shank Width | 3/4 in |
| Cutting Location | External |
| Toolholder Style | KGBA |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
