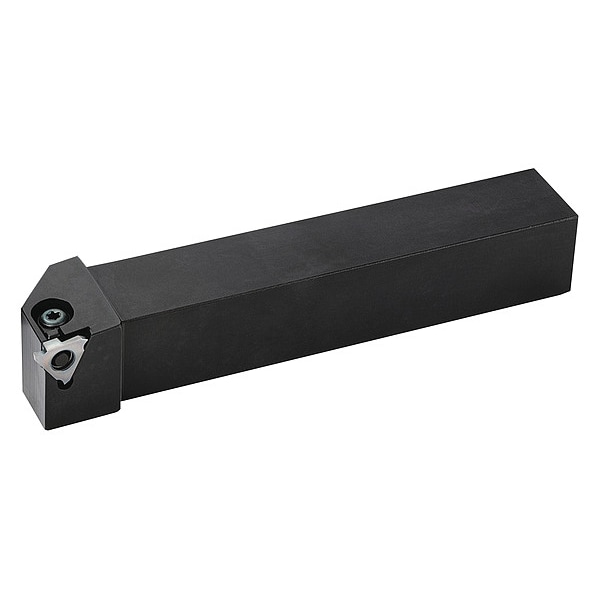

External Grooving Toolholder, KGBAR 16435
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 6 in |
| Cutting Direction | Right Hand |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Uses Economical Inserts with 3 Cutting Edges |
| ISO Number | KGBAR16435 |
| Shank Height | 1 in |
| Cutting Height | 1 in |
| Head Length | 1.0039 in |
| Toolholder Style | KGBA |
| Side-to-Cutting Tip | 1-1/4 in |
| ANSI Code | KGBAR16435 |
| Cutting Application | Shallow Grooving |
| Cutting Location | External |
| Shank Material | Steel |
| Insert Holding Type | Lever Lock |
| Shank Width | 1 in |
| Max. Grooving Width | 0.189 in |
| Depth of Cut | 0.217 in |
| Insert Style | GBA |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
