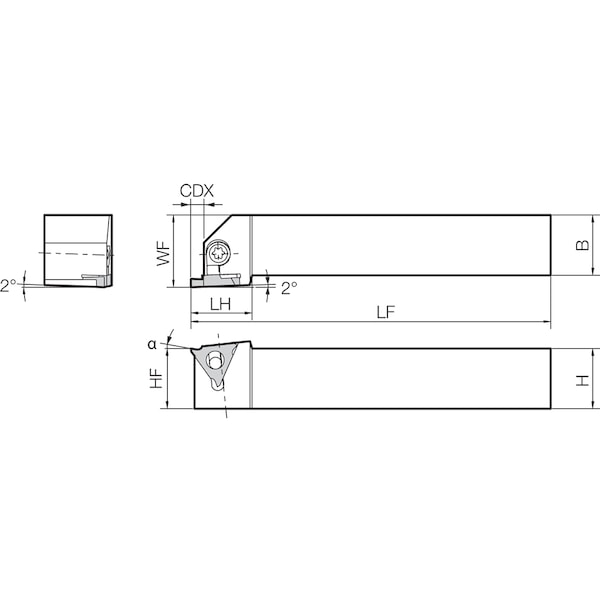

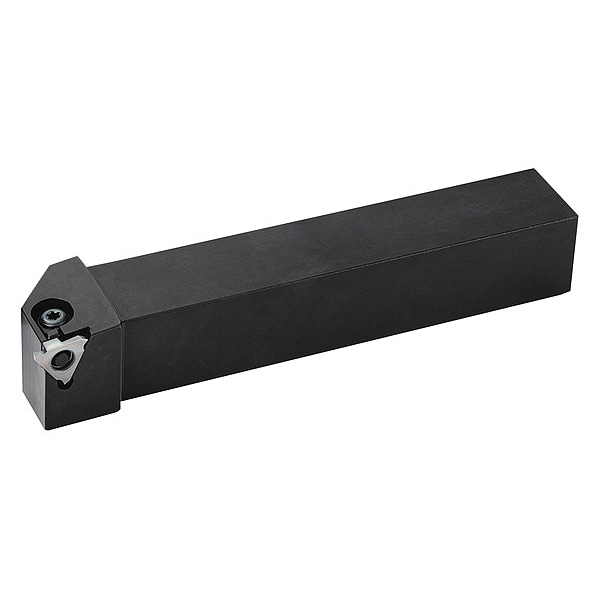

External Grooving Toolholder, KGBAR 2525M2235
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 150 mm |
| Cutting Direction | Right Hand |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Uses Economical Inserts with 3 Cutting Edges |
| Depth of Cut | 5.5 mm |
| Toolholder Style | KGBA |
| Cutting Height | 25 mm |
| Coolant Fed | Non-Coolant Through |
| Max. Grooving Width | 4.8 mm |
| ANSI Code | KGBAR2525M2235 |
| Cutting Location | External |
| Shank Width | 25 mm |
| Insert Holding Type | Lever Lock |
| Side-to-Cutting Tip | 30 mm |
| Cutting Application | Shallow Grooving |
| Shank Material | Steel |
| Head Length | 25.5 mm |
| Insert Style | GBA |
| ISO Number | KGBAR2525M22-35 |
| Shank Height | 25 mm |
| Package Quantity | 1 |
