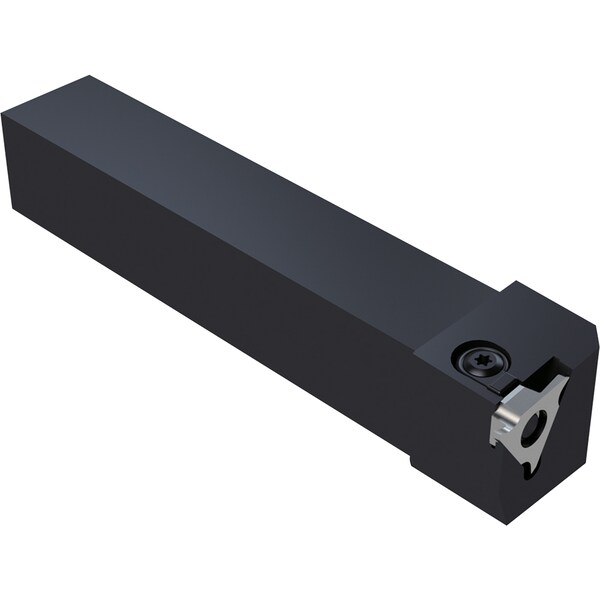

External Grooving Toolholder, KGBASL 2525M2215
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Shank Shape | Square |
| Cutting Direction | Left Hand |
| Overall Length | 150 mm |
| Features | 90 Degrees Toolholder Design, Rake Angle is Insert Dependent, Smooth Chip Control, Uses Economical Inserts with 3 Cutting Edges |
| Cutting Location | External |
| Shank Height | 25 mm |
| Max. Grooving Width | 3 mm |
| Head Length | 25 mm |
| Coolant Fed | Non-Coolant Through |
| ISO Number | KGBASL2525M22-15 |
| Cutting Application | Shallow Grooving |
| Toolholder Style | KGBAS |
| Depth of Cut | 4 mm |
| Shank Width | 25 mm |
| Insert Style | GBA |
| Shank Material | Steel |
| Side-to-Cutting Tip | 32 mm |
| Insert Holding Type | Lever Lock |
| Cutting Height | 25 mm |
| ANSI Code | KGBASL2525M2215 |
| Package Quantity | 1 |
