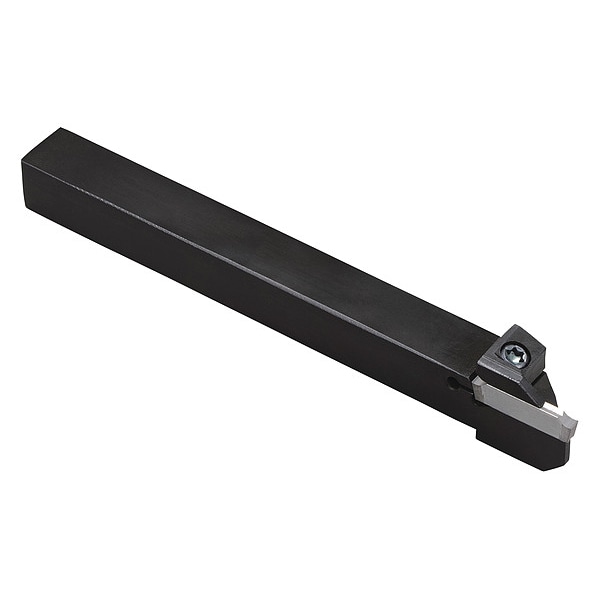

External Grooving Toolholder, KGDL 103JX
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Cutting Direction | Left Hand |
| Overall Length | 4-3/4 in |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Depth of Cut | 2.518 in |
| Cutting Height | 5/8 in |
| Insert Style | GDMS, GDG, GDGS |
| Max. Grooving Width | 0.1575 in |
| Coolant Fed | Non-Coolant Through |
| Insert Holding Type | Screw |
| Toolholder Style | KGD |
| ISO Number | KGDL103JX |
| Shank Height | 5/8 in |
| Cutting Location | External |
| Head Length | 0.9646 in |

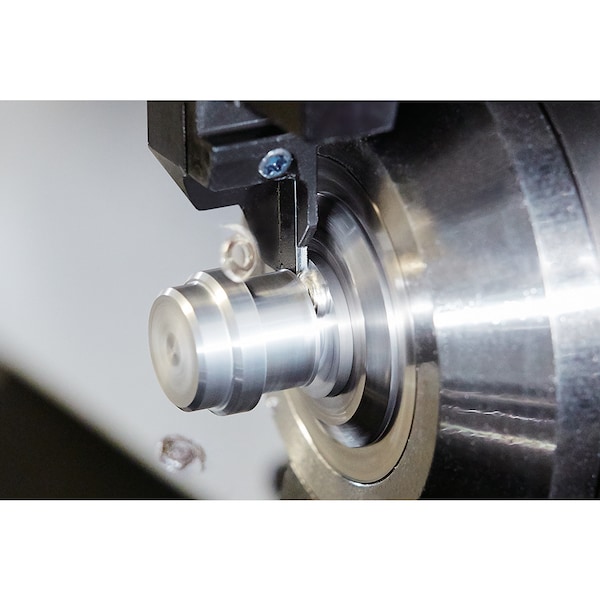

| Cutting Application | Cut-Off, Small Diameter Grooving |
| ANSI Code | KGDL103JX |
| Side-to-Cutting Tip | 0.578 in |
| Shank Width | 5/8 in |
| Shank Material | Steel |
| Package Quantity | 1 |
