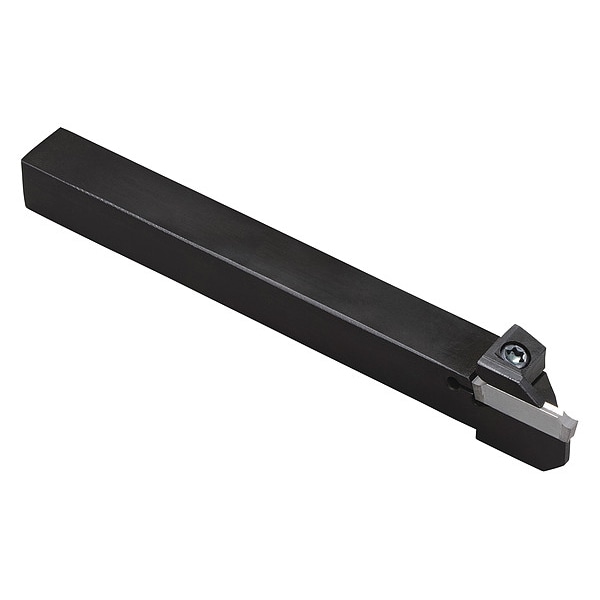

External Grooving Toolholder, KGDL 1212JX15
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Cutting Direction | Left Hand |

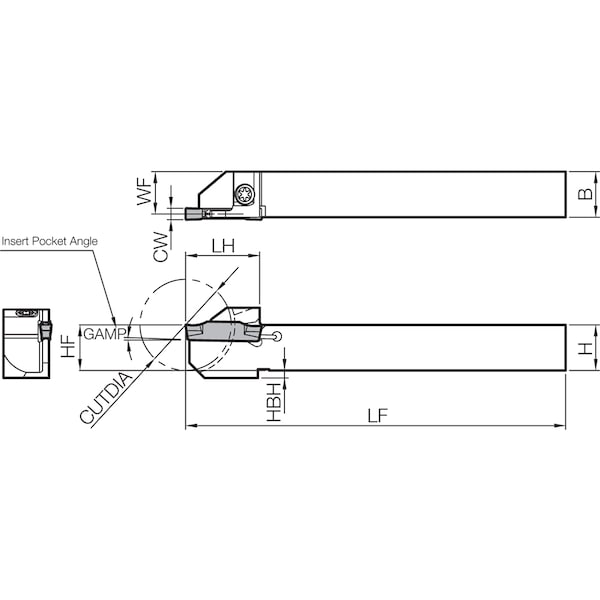

| Overall Length | 120 mm |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Insert Style | GDMS |
| Insert Holding Type | Screw |
| Shank Width | 12 mm |
| Head Length | 19.5 mm |
| Shank Material | Steel |
| Toolholder Style | KGD |
| Cutting Height | 12 mm |
| Max. Grooving Width | 1.5 mm |
| Shank Height | 12 mm |
| Side-to-Cutting Tip | 11.4 mm |

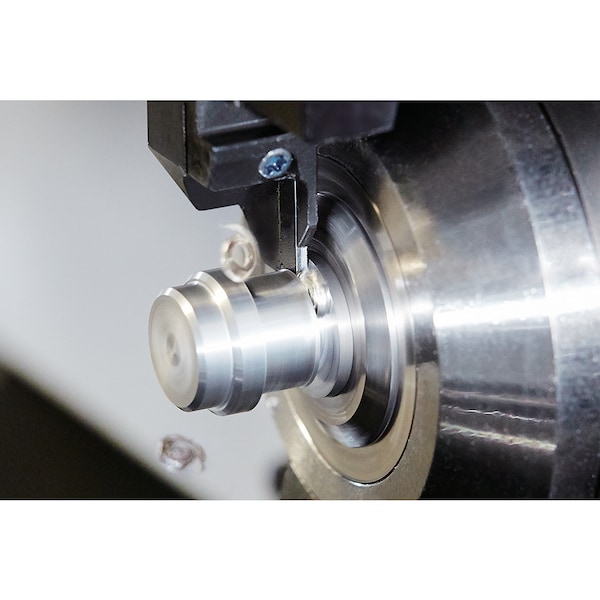

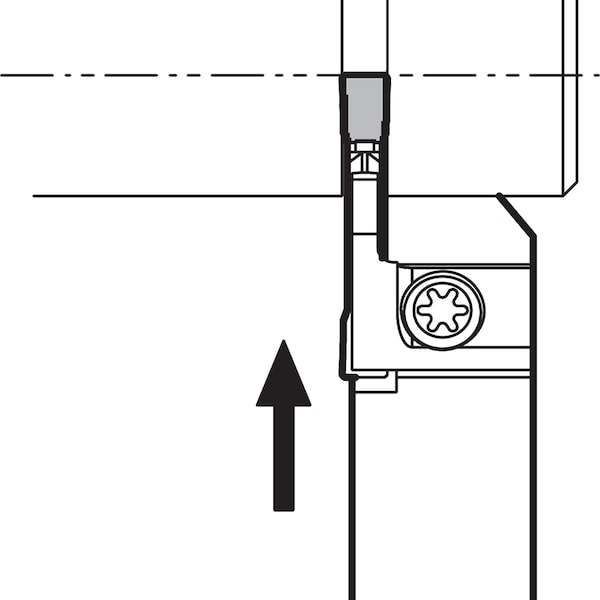

| Cutting Application | Cut-Off, Small Diameter Grooving |
| Coolant Fed | Non-Coolant Through |
| Cutting Location | External |
| ISO Number | KGDL1212JX-1.5 |
| ANSI Code | KGDL1212JX15 |
| Depth of Cut | 48 mm |
| Package Quantity | 1 |
