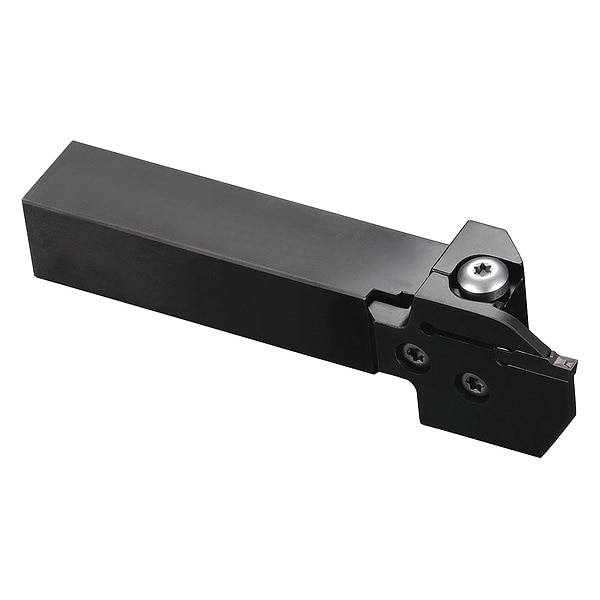

External Grooving Toolholder, KGDL 12X3T20S
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 4.92 in |
| Shank Shape | Square |
| Cutting Direction | Left Hand |
| Includes | Toolholder and Blade |
| Features | Adaptable to a Wide Range of Applications by Swapping Out Blades, High Rigidity Switch Blade Style Holder, Rake Angle is Insert Dependent, Various Edge Widths and Cutting Depths Possible by Changing the Blade and Toolholder Combination |
| Shank Width | 3/4 in |
| Side-to-Cutting Tip | 0.87 in |
| Cutting Location | External |
| Depth of Cut | 0.7874 in |
| Cutting Height | 3/4 in |
| Head Length | 1.69 in |
| Insert Holding Type | Screw |
| Cutting Application | Cut-Off, Grooving |
| Toolholder Style | KGD-S |
| Max. Grooving Width | 0.1575 in |
| Coolant Fed | Non-Coolant Through |
| Shank Height | 3/4 in |
| ISO Number | KGDL12X3T20S |
| Shank Material | Steel |
| ANSI Code | KGDL12X3T20S |
| Insert Style | GDMS, GDG, GDGS |
| Package Quantity | 1 |
