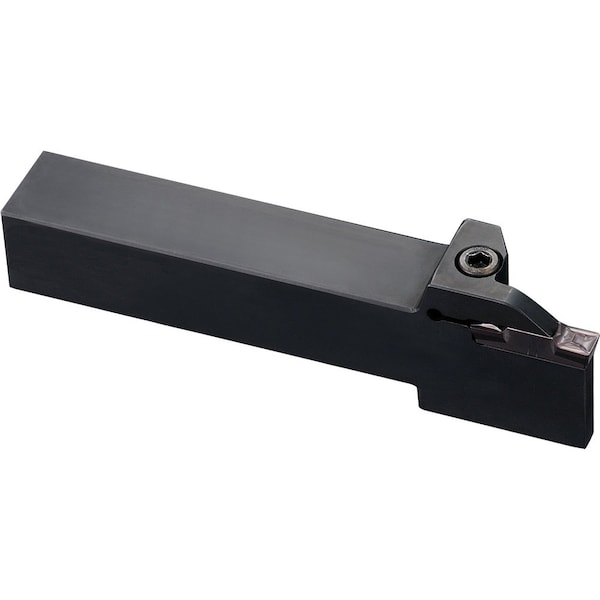

External Grooving Toolholder, KGDL 1616H2T17
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|

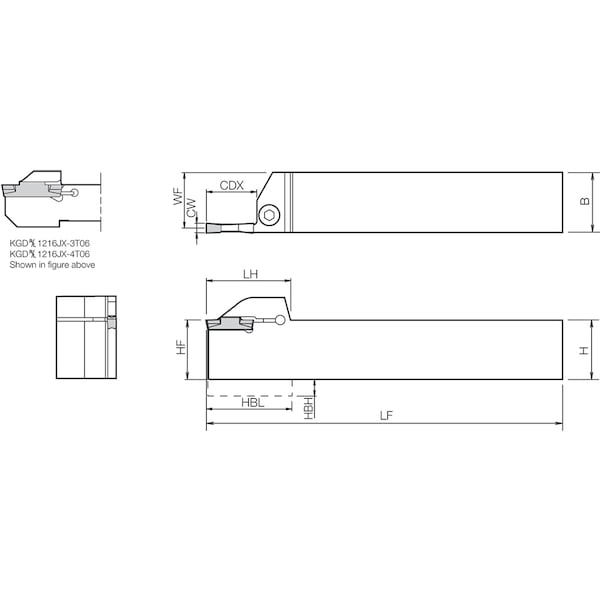

| Overall Length | 100 mm |
| Shank Shape | Square |
| Cutting Direction | Left Hand |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Max. Grooving Width | 3 mm |
| Coolant Fed | Non-Coolant Through |
| Cutting Application | Cut-Off, Grooving |
| Head Length | 31.2 mm |
| Shank Height | 16 mm |
| Side-to-Cutting Tip | 15.2 mm |
| Cutting Height | 16 mm |
| Shank Width | 16 mm |
| ISO Number | KGDL1616H2T17 |
| Insert Holding Type | Screw |
| Cutting Location | External |
| ANSI Code | KGDL1616H2T17 |
| Shank Material | Steel |
| Depth of Cut | 17 mm |
| Toolholder Style | KGD |
| Insert Style | GDMS, GDG, GDGS |
| Package Quantity | 1 |
