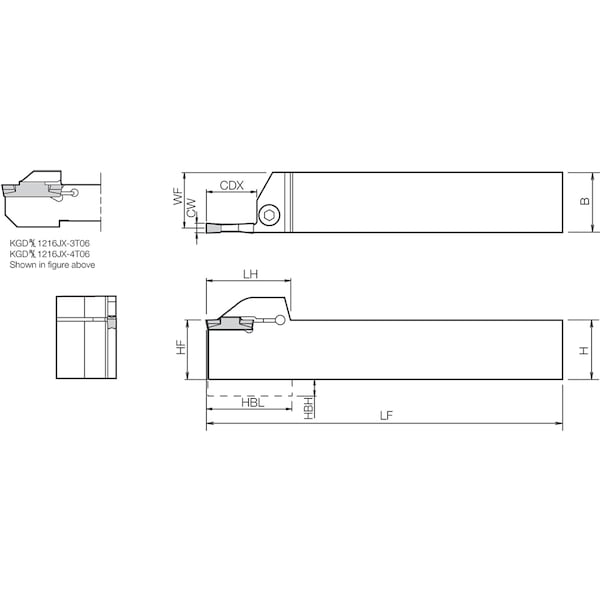

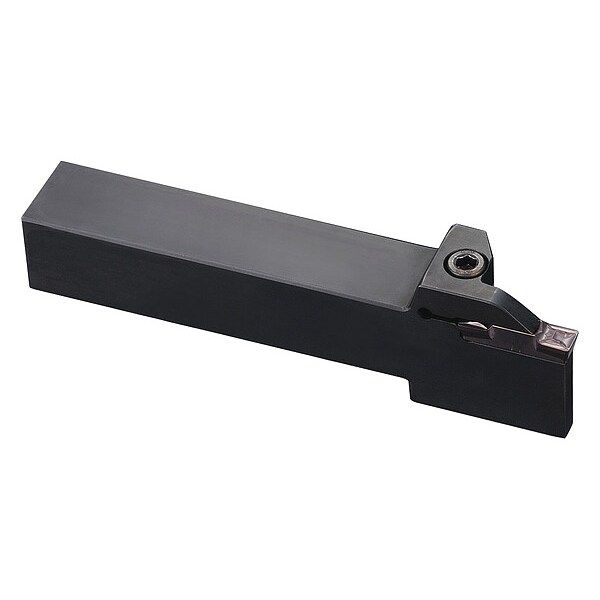

External Grooving Toolholder, KGDL 1616H3T20
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 100 mm |
| Cutting Direction | Left Hand |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Shank Material | Steel |
| Shank Height | 16 mm |
| Shank Width | 16 mm |
| Coolant Fed | Non-Coolant Through |
| Insert Holding Type | Screw |
| Cutting Location | External |
| ANSI Code | KGDL1616H3T20 |
| Depth of Cut | 20 mm |
| Toolholder Style | KGD |
| Max. Grooving Width | 4 mm |
| Side-to-Cutting Tip | 14.8 mm |
| Cutting Height | 16 mm |
| Insert Style | GDMS, GDG, GDGS |
| Head Length | 34.2 mm |

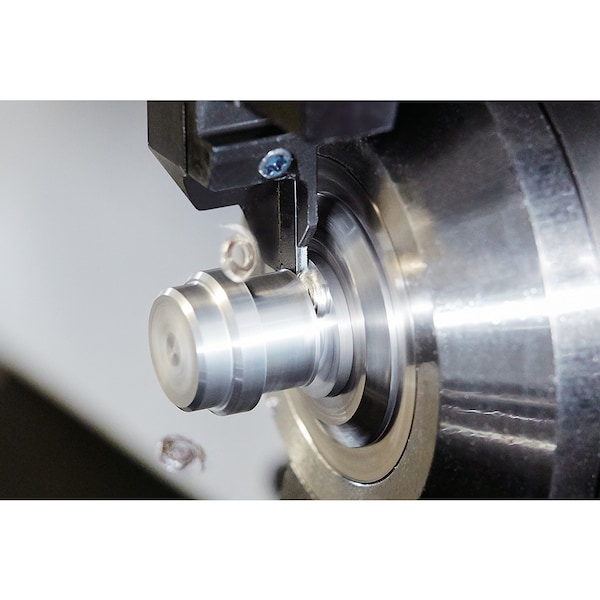

| Cutting Application | Cut-Off, Grooving |
| ISO Number | KGDL1616H3T20 |
| Package Quantity | 1 |
