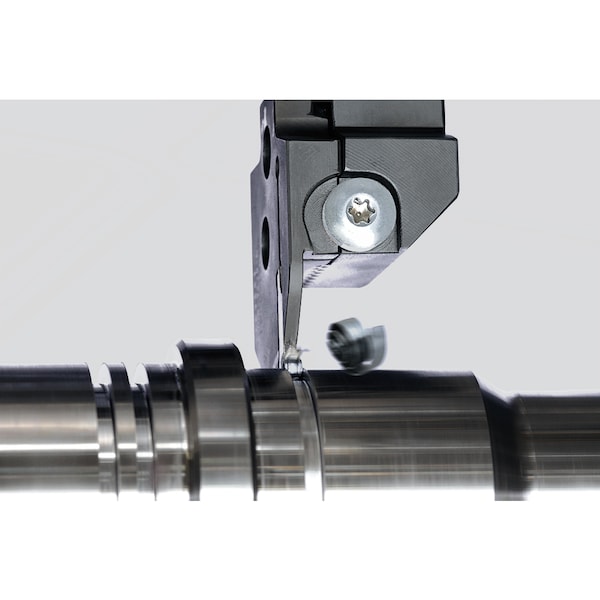

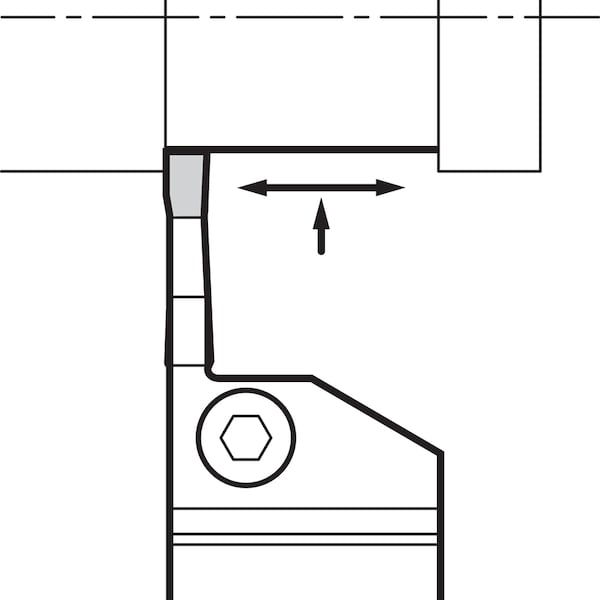

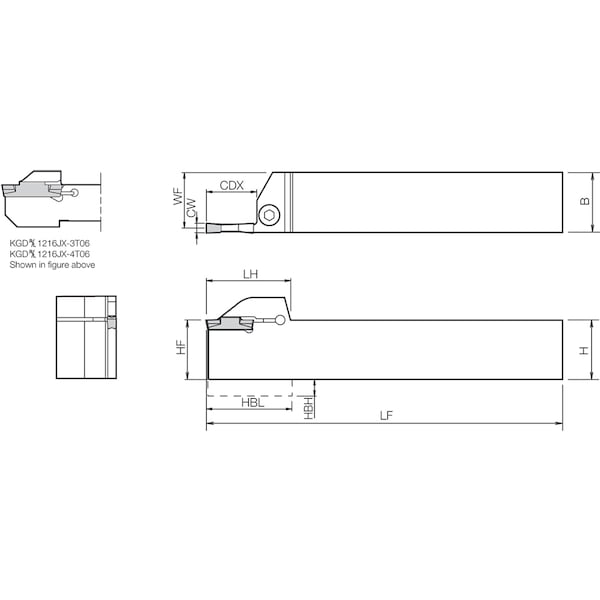

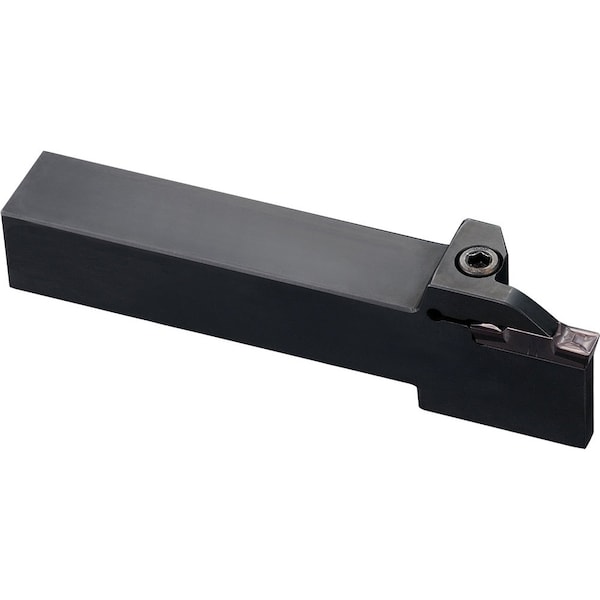

External Grooving Toolholder, KGDL 163T20
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Shank Shape | Square |
| Overall Length | 5.9 in |
| Cutting Direction | Left Hand |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Cutting Location | External |
| Insert Style | GDMS, GDG, GDGS |
| Shank Height | 1 in |
| ISO Number | KGDL163T20 |
| Side-to-Cutting Tip | 0.95 in |
| Depth of Cut | 0.7874 in |
| Coolant Fed | Non-Coolant Through |
| Insert Holding Type | Screw |
| Cutting Height | 1 in |
| Shank Width | 1 in |
| ANSI Code | KGDL163T20 |
| Cutting Application | Cut-Off, Grooving |
| Shank Material | Steel |
| Max. Grooving Width | 0.1575 in |
| Toolholder Style | KGD |
| Head Length | 1.39 in |
| Package Quantity | 1 |
