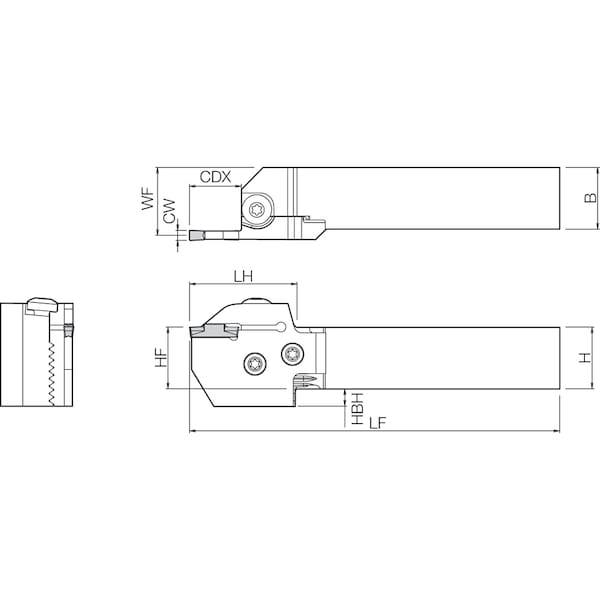

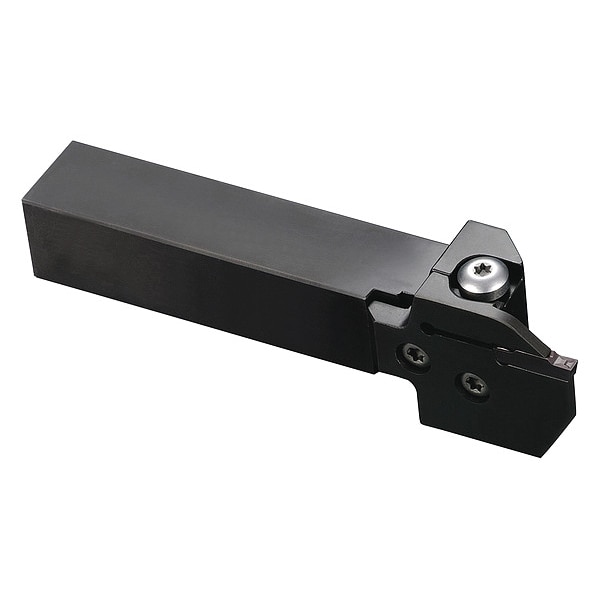

External Grooving Toolholder, KGDL 16X4T20S
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 5.91 in |
| Shank Shape | Square |
| Includes | Toolholder and Blade |
| Cutting Direction | Left Hand |
| Features | Adaptable to a Wide Range of Applications by Swapping Out Blades, High Rigidity Switch Blade Style Holder, Rake Angle is Insert Dependent, Various Edge Widths and Cutting Depths Possible by Changing the Blade and Toolholder Combination |
| Toolholder Style | KGD-S |
| Shank Material | Steel |
| ANSI Code | KGDL16X4T20S |
| Coolant Fed | Non-Coolant Through |
| Insert Holding Type | Screw |
| Shank Width | 1 in |
| Shank Height | 1 in |
| ISO Number | KGDL16X4T20S |
| Head Length | 1.69 in |
| Depth of Cut | 0.7874 in |
| Side-to-Cutting Tip | 1.1 in |
| Insert Style | GDMS, GDG, GDGS |

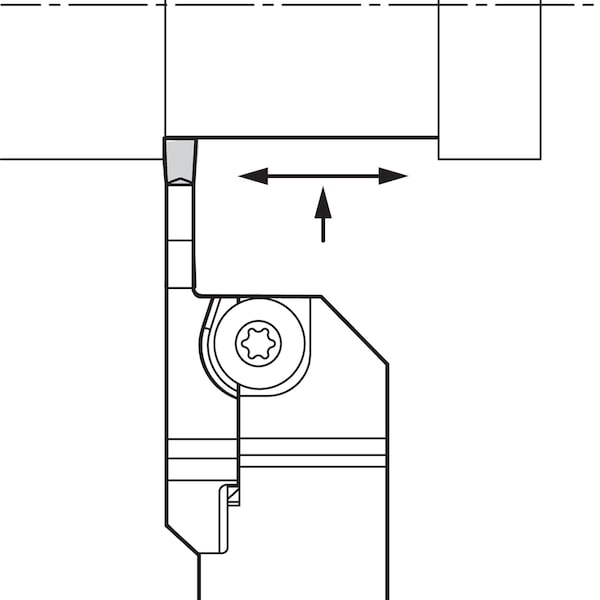

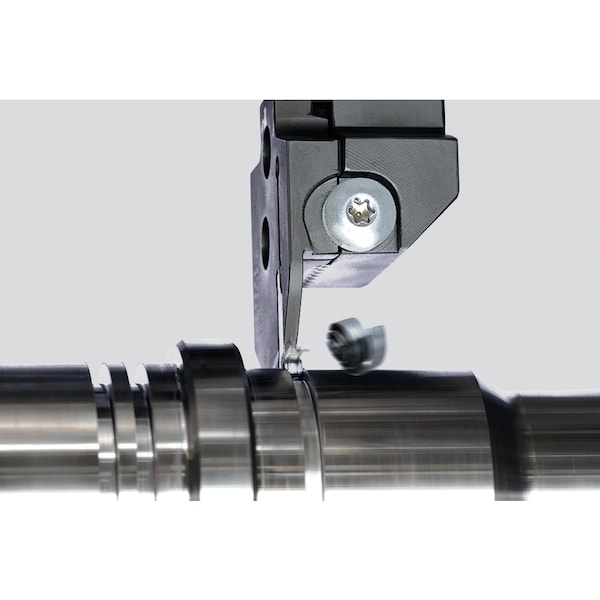

| Cutting Application | Cut-Off, Grooving |
| Cutting Height | 1 in |
| Max. Grooving Width | 0.1969 in |
| Cutting Location | External |
| Package Quantity | 1 |
