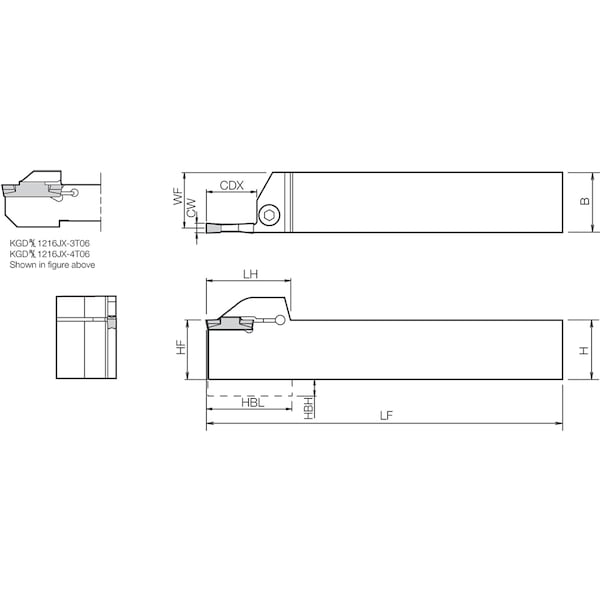

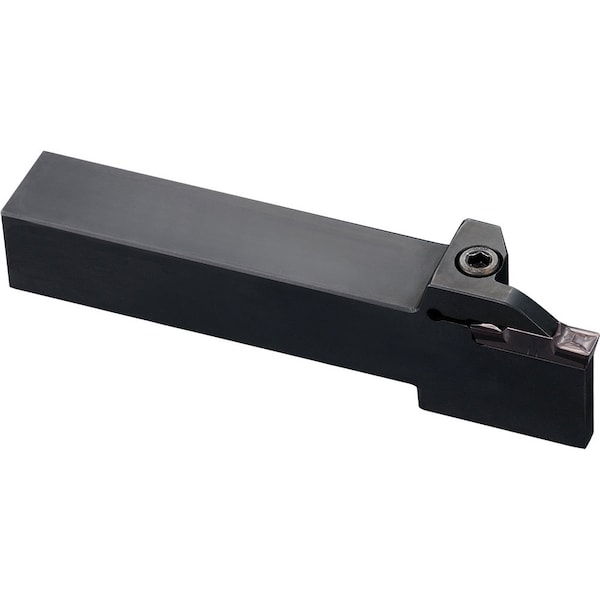

External Grooving Toolholder, KGDL 2020K2T17
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 125 mm |
| Cutting Direction | Left Hand |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Cutting Height | 20 mm |
| Shank Material | Steel |
| Shank Height | 20 mm |
| Cutting Location | External |
| Side-to-Cutting Tip | 19.2 mm |
| Coolant Fed | Non-Coolant Through |
| ISO Number | KGDL2020K2T17 |
| Shank Width | 20 mm |
| Head Length | 32.5 mm |
| Toolholder Style | KGD |
| Insert Holding Type | Screw |
| Insert Style | GDMS, GDG, GDGS |
| ANSI Code | KGDL2020K2T17 |
| Depth of Cut | 17 mm |
| Max. Grooving Width | 3 mm |

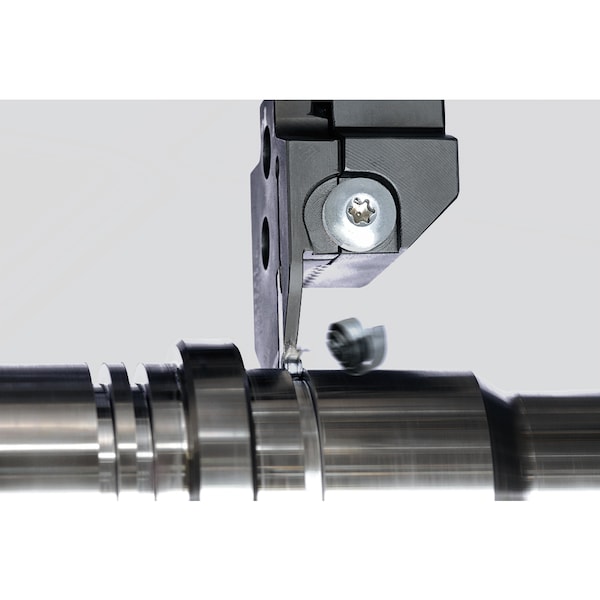

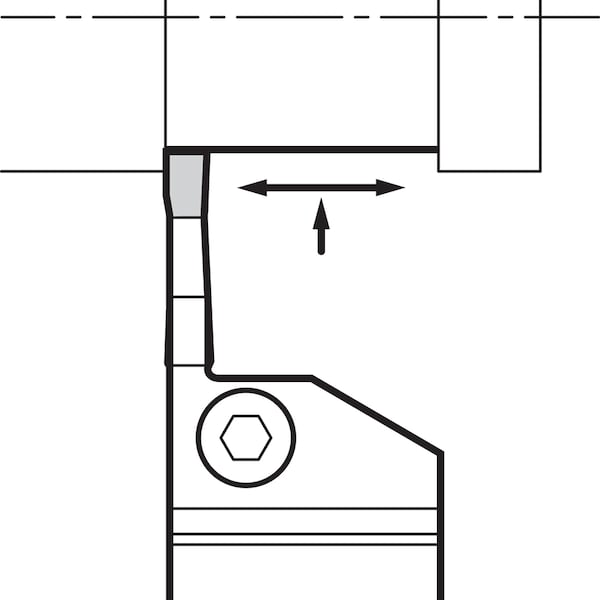

| Cutting Application | Cut-Off, Grooving |
| Package Quantity | 1 |
