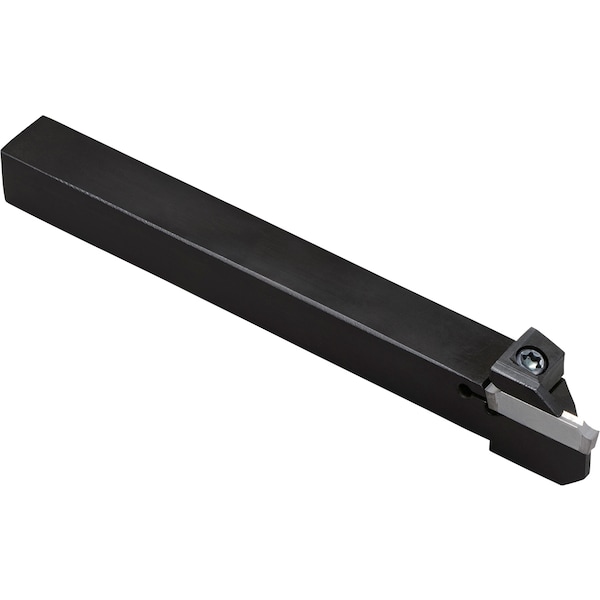

External Grooving Toolholder, KGDL 83JX
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Cutting Direction | Left Hand |

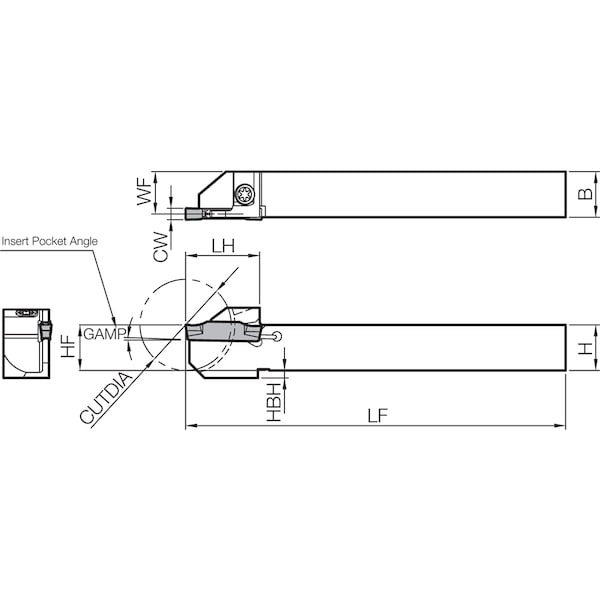

| Overall Length | 4-3/4 in |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Max. Grooving Width | 0.1181 in |
| ISO Number | KGDL83JX |
| Coolant Fed | Non-Coolant Through |
| Insert Holding Type | Screw |
| Toolholder Style | KGD |

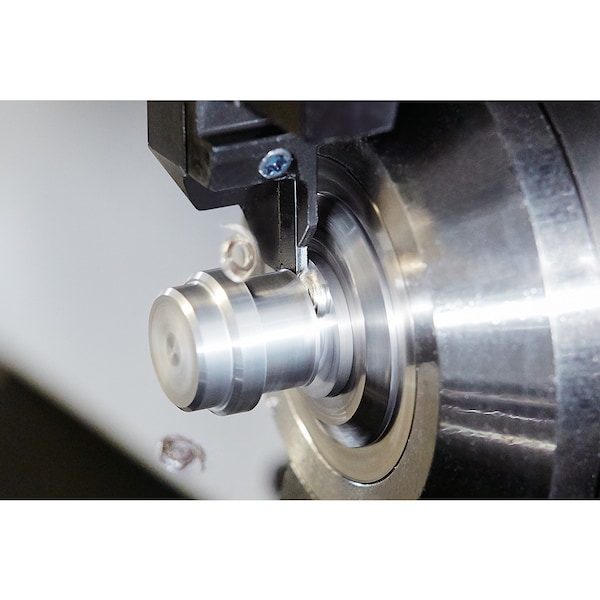

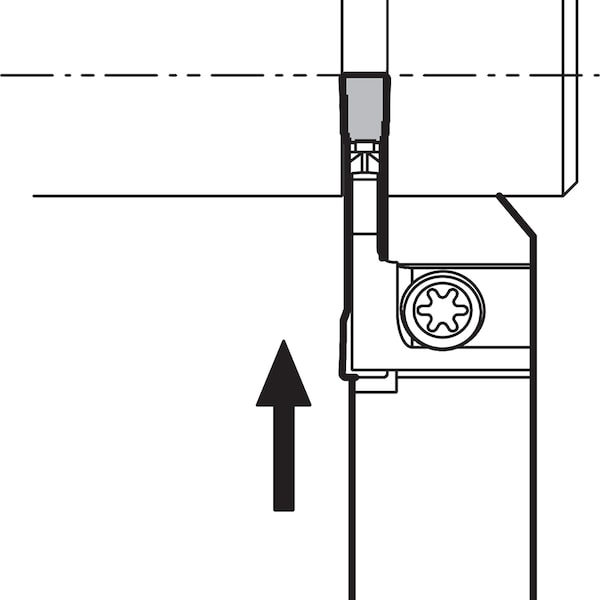

| Cutting Application | Cut-Off, Small Diameter Grooving |
| Head Length | 0.7677 in |
| ANSI Code | KGDL83JX |
| Shank Width | 1/2 in |
| Shank Height | 1/2 in |
| Cutting Height | 1/2 in |
| Shank Material | Steel |
| Depth of Cut | 1.888 in |
| Side-to-Cutting Tip | 0.4528 in |
| Insert Style | GDMS, GDG, GDGS |
| Cutting Location | External |
| Package Quantity | 1 |
