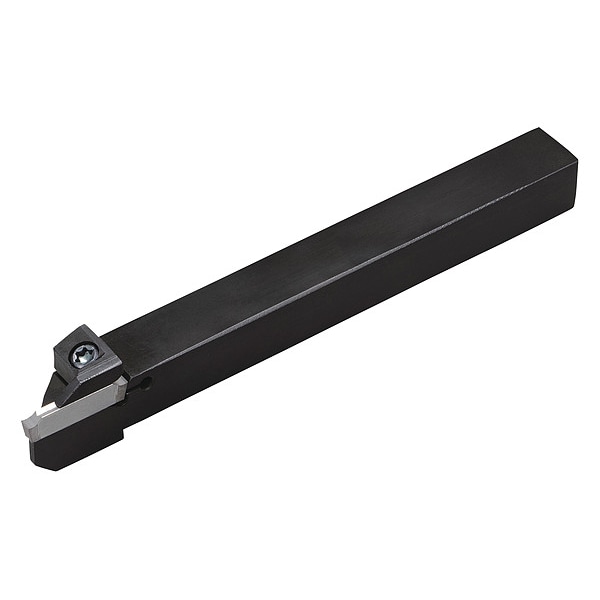

External Grooving Toolholder, KGDR 102JX
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 4-3/4 in |

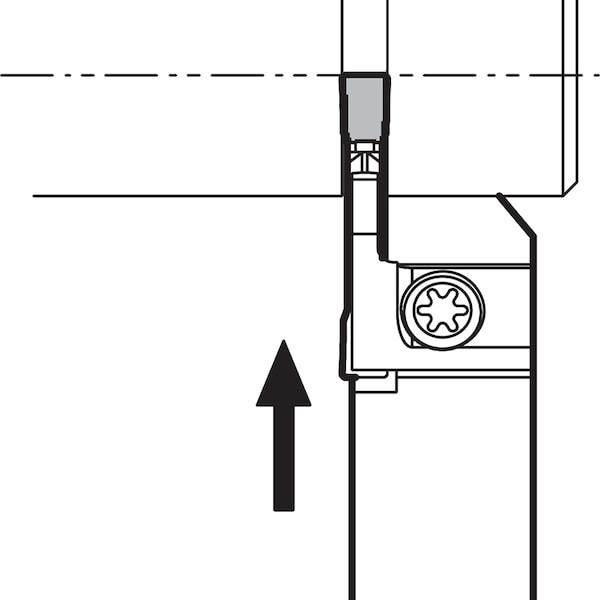

| Cutting Direction | Right Hand |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |

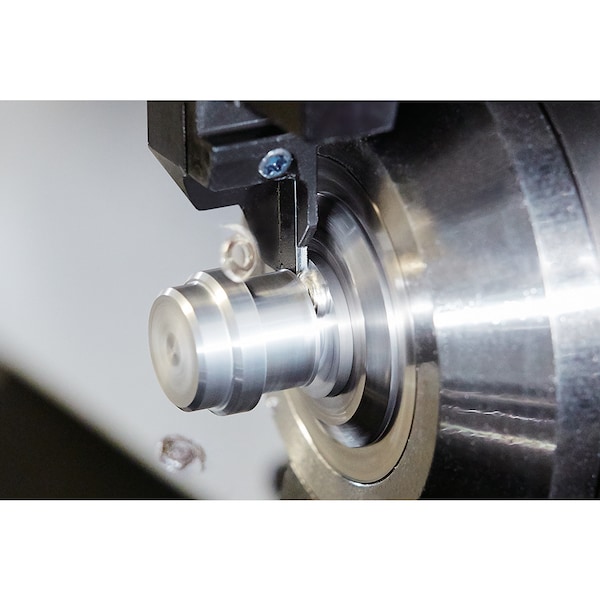

| Cutting Application | Cut-Off, Small Diameter Grooving |
| Cutting Location | External |
| Depth of Cut | 2.518 in |
| Coolant Fed | Non-Coolant Through |
| Shank Material | Steel |

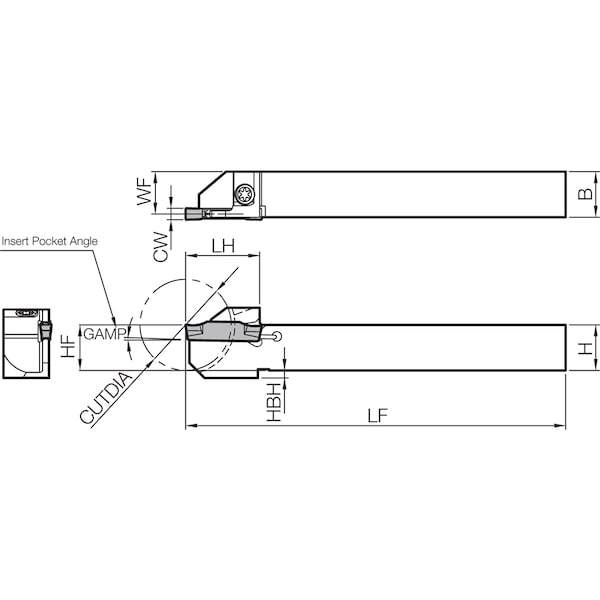

| Side-to-Cutting Tip | 0.592 in |
| Max. Grooving Width | 0.1181 in |
| Shank Height | 5/8 in |
| Cutting Height | 5/8 in |
| Toolholder Style | KGD |
| ISO Number | KGDR102JX |
| ANSI Code | KGDR102JX |
| Head Length | 0.9646 in |
| Insert Holding Type | Screw |
| Shank Width | 5/8 in |
| Insert Style | GDMS, GDG, GDGS |
| Package Quantity | 1 |
