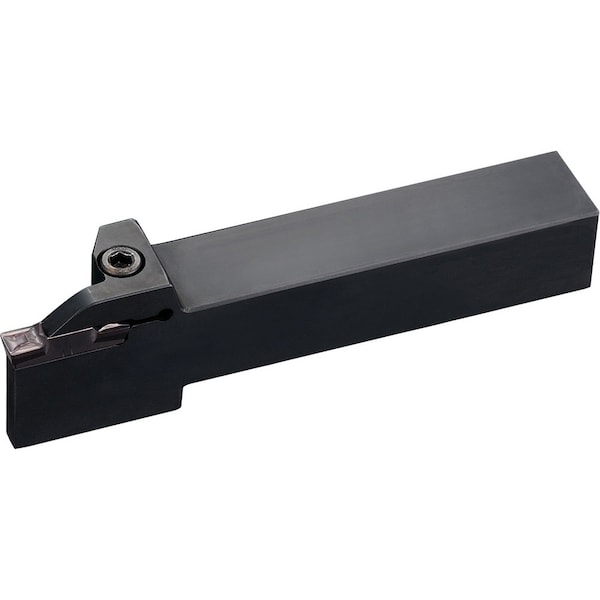

External Grooving Toolholder, KGDR 122T17
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 4.92 in |
| Cutting Direction | Right Hand |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Side-to-Cutting Tip | 0.71 in |

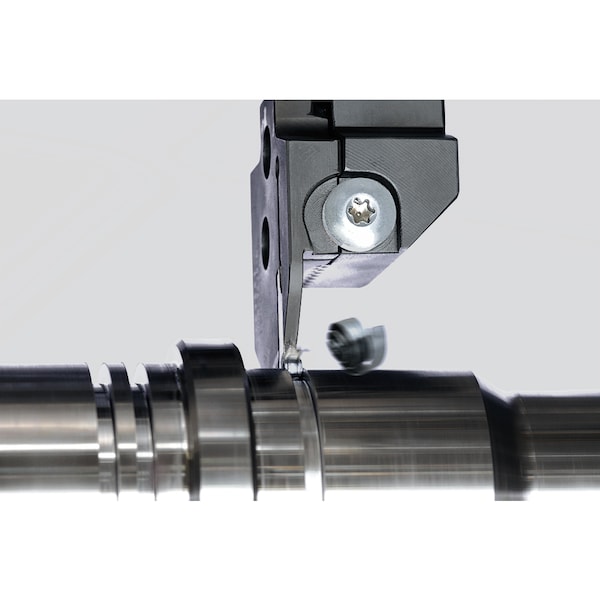

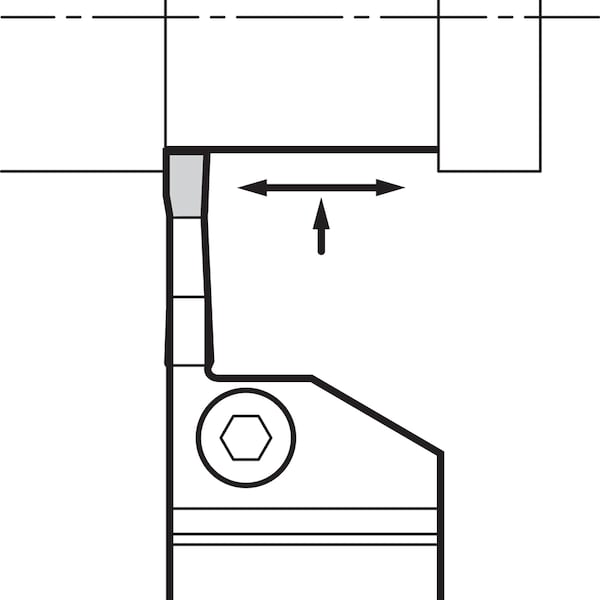

| Cutting Application | Cut-Off, Grooving |
| Shank Height | 3/4 in |
| Head Length | 1.2795 in |
| Shank Width | 3/4 in |
| Toolholder Style | KGD |
| Max. Grooving Width | 0.1181 in |
| Coolant Fed | Non-Coolant Through |
| Insert Style | GDMS, GDG, GDGS |
| Cutting Location | External |
| ISO Number | KGDR122T17 |
| Insert Holding Type | Screw |
| Cutting Height | 3/4 in |
| Depth of Cut | 0.6693 in |
| Shank Material | Steel |
| ANSI Code | KGDR122T17 |
| Package Quantity | 1 |
