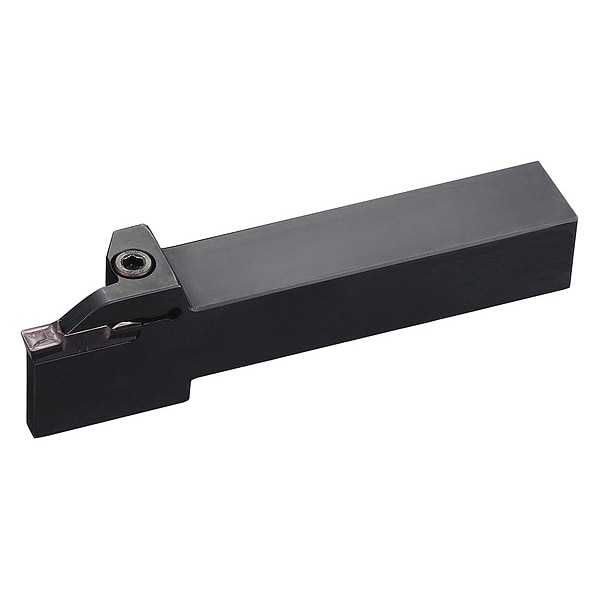

External Grooving Toolholder, KGDR 1616H2T10
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Shank Shape | Square |
| Overall Length | 100 mm |
| Cutting Direction | Right Hand |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Head Length | 30.2 mm |
| Max. Grooving Width | 3 mm |
| Shank Width | 16 mm |
| Insert Holding Type | Screw |
| Cutting Application | Cut-Off, Grooving |
| Shank Material | Steel |
| Cutting Location | External |
| Shank Height | 16 mm |
| Toolholder Style | KGD |
| Side-to-Cutting Tip | 15.2 mm |
| Coolant Fed | Non-Coolant Through |
| ISO Number | KGDR1616H2T10 |
| Insert Style | GDMS, GDG, GDGS |
| ANSI Code | KGDR1616H2T10 |
| Cutting Height | 16 mm |
| Depth of Cut | 10 mm |
| Package Quantity | 1 |
