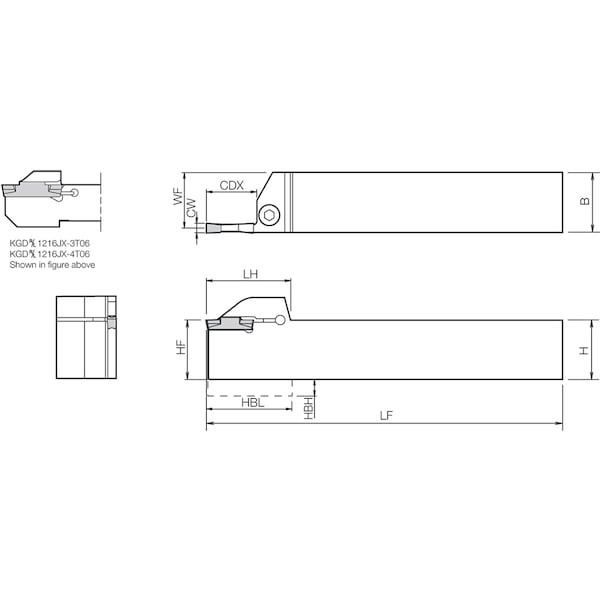

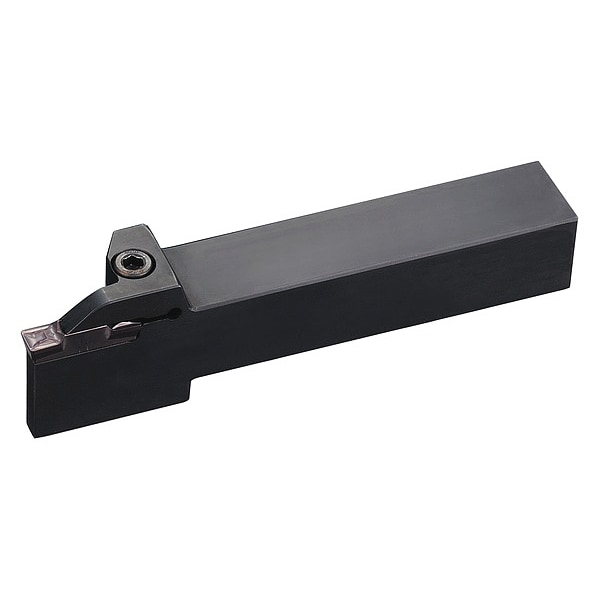

External Grooving Toolholder, KGDR 166T30
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Cutting Direction | Right Hand |
| Shank Shape | Square |
| Overall Length | 5.9 in |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Cutting Height | 1 in |
| Insert Style | GDMS, GDG, GDGS |
| Side-to-Cutting Tip | 0.89 in |
| ANSI Code | KGDR166T30 |
| Depth of Cut | 1.1811 in |
| Insert Holding Type | Screw |
| Toolholder Style | KGD |
| ISO Number | KGDR166T30 |
| Shank Height | 1 in |
| Head Length | 1.79 in |
| Max. Grooving Width | 0.2362 in |

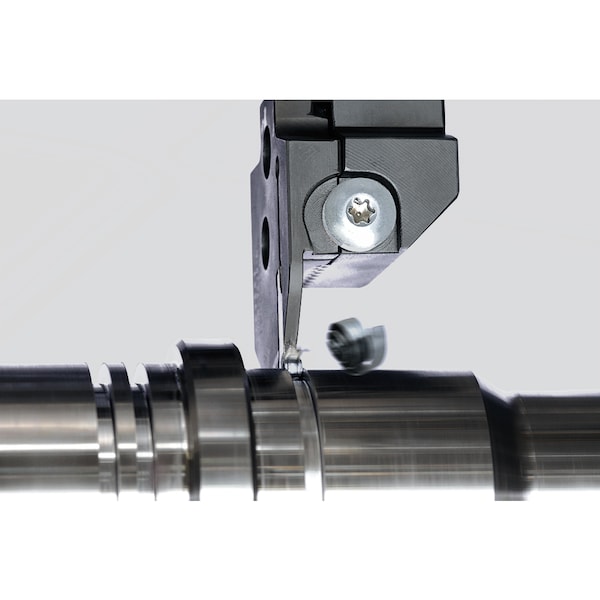

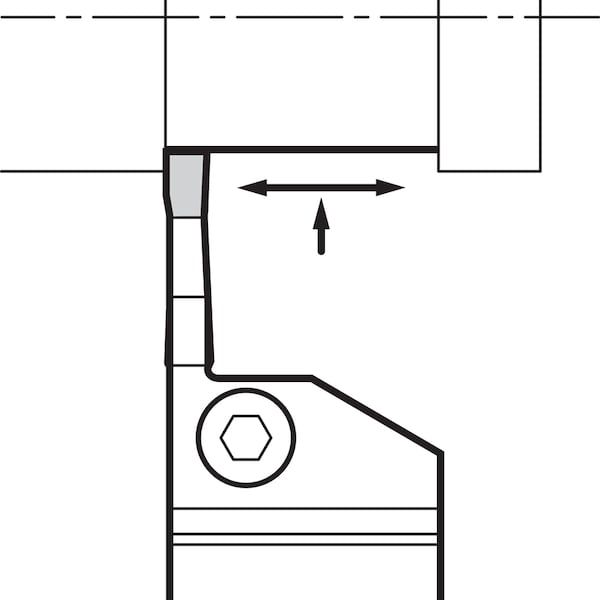

| Cutting Application | Cut-Off, Grooving |
| Coolant Fed | Non-Coolant Through |
| Shank Width | 1 in |
| Shank Material | Steel |
| Cutting Location | External |
| Package Quantity | 1 |
