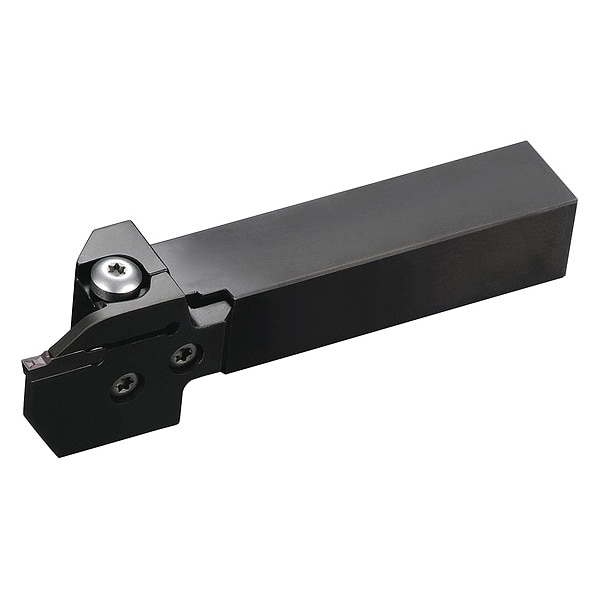

External Grooving Toolholder, KGDR 16X3T20S
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Cutting Direction | Right Hand |
| Includes | Toolholder and Blade |
| Shank Shape | Square |

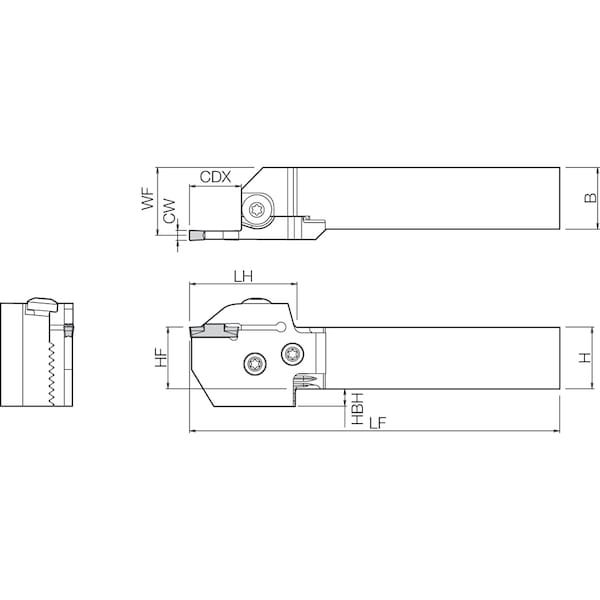

| Overall Length | 5.91 in |
| Features | Adaptable to a Wide Range of Applications by Swapping Out Blades, High Rigidity Switch Blade Style Holder, Rake Angle is Insert Dependent, Various Edge Widths and Cutting Depths Possible by Changing the Blade and Toolholder Combination |
| Shank Material | Steel |
| Insert Holding Type | Screw |
| Side-to-Cutting Tip | 1.12 in |
| Depth of Cut | 0.7874 in |
| ANSI Code | KGDR16X3T20S |
| Toolholder Style | KGD-S |
| Max. Grooving Width | 0.1575 in |
| Coolant Fed | Non-Coolant Through |
| Cutting Height | 1 in |

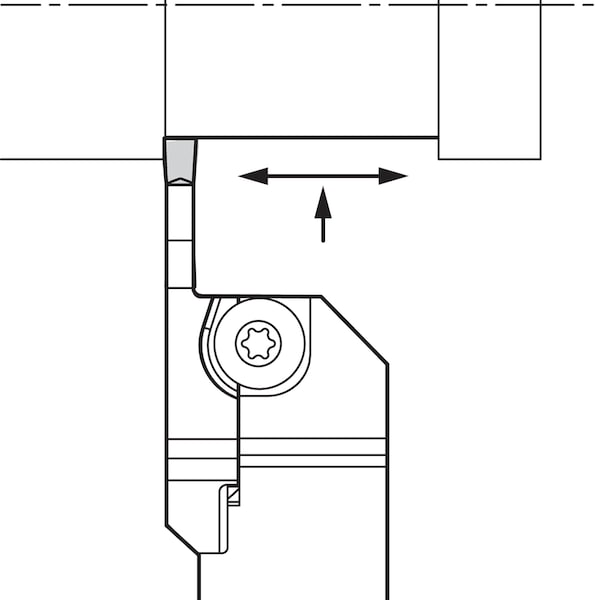

| Cutting Location | External |
| ISO Number | KGDR16X3T20S |
| Shank Height | 1 in |

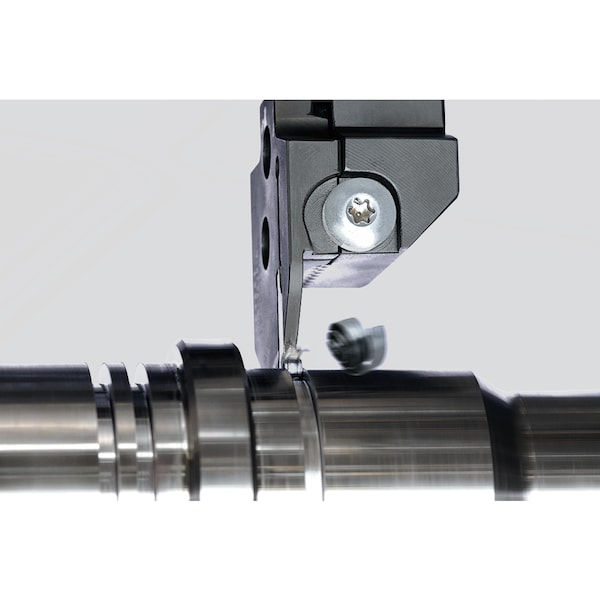

| Cutting Application | Cut-Off, Grooving |
| Insert Style | GDMS, GDG, GDGS |
| Head Length | 1.69 in |
| Shank Width | 1 in |
| Package Quantity | 1 |
