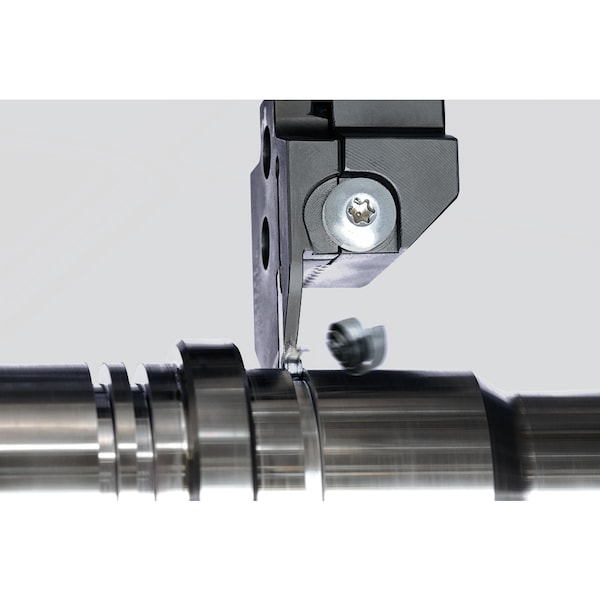

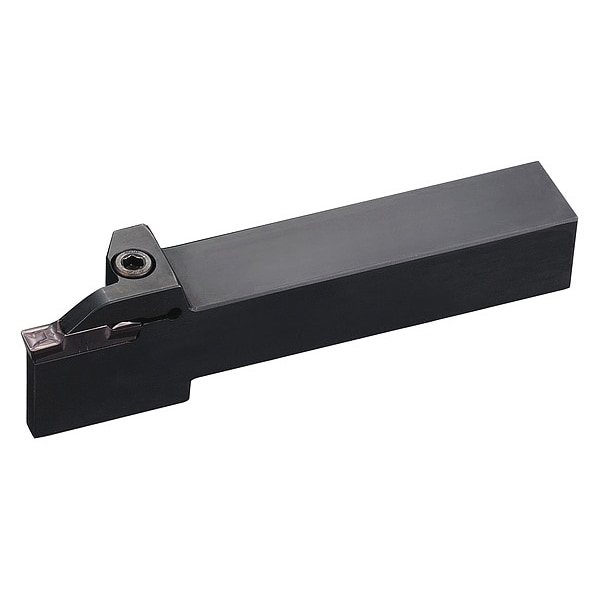

External Grooving Toolholder, KGDR 2525M2T06
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Cutting Direction | Right Hand |
| Overall Length | 150 mm |
| Shank Shape | Square |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Coolant Fed | Non-Coolant Through |
| Head Length | 28 mm |
| Shank Width | 25 mm |
| Max. Grooving Width | 3 mm |
| Shank Material | Steel |
| Shank Height | 25 mm |
| Cutting Height | 25 mm |
| Insert Style | GDMS, GDG, GDGS |
| ISO Number | KGDR2525M2T06 |
| Cutting Location | External |
| Depth of Cut | 6 mm |
| Toolholder Style | KGD |
| Side-to-Cutting Tip | 24.2 mm |
| ANSI Code | KGDR2525M2T06 |
| Insert Holding Type | Screw |
| Cutting Application | Cut-Off, Grooving |
| Package Quantity | 1 |
