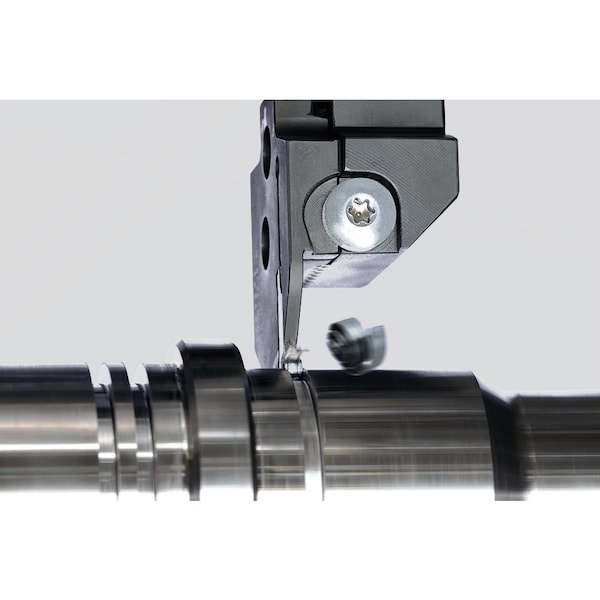

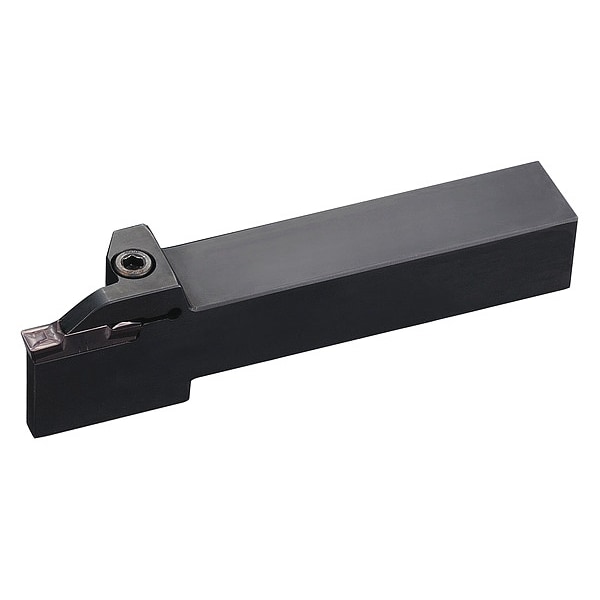

External Grooving Toolholder, KGDR 2525M6T30
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|

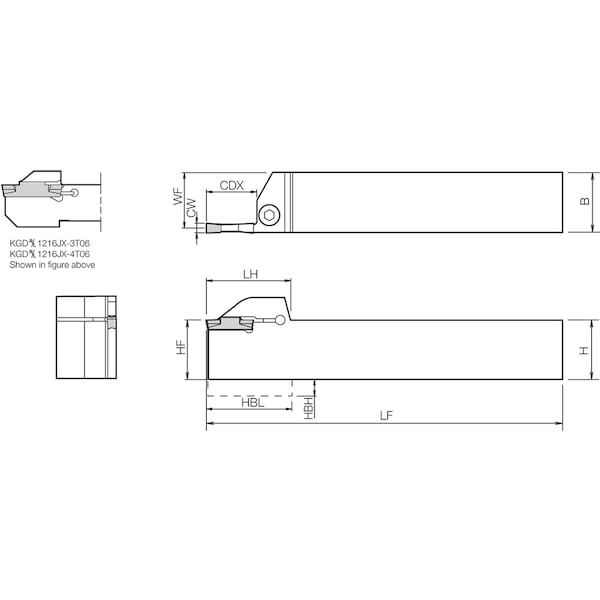

| Overall Length | 150 mm |
| Shank Shape | Square |
| Cutting Direction | Right Hand |
| Features | Rake Angle is Insert Dependent, Smooth Chip Control, Toolholder Design Provides Improved Insert Clamping Force |
| Insert Style | GDMS, GDG, GDGS |
| Cutting Location | External |
| Insert Holding Type | Screw |
| Shank Material | Steel |
| Max. Grooving Width | 6 mm |
| Head Length | 45.5 mm |
| ISO Number | KGDR2525M6T30 |
| Depth of Cut | 30 mm |
| Cutting Height | 25 mm |
| Side-to-Cutting Tip | 22.4 mm |
| Toolholder Style | KGD |
| ANSI Code | KGDR2525M6T30 |
| Shank Height | 25 mm |
| Coolant Fed | Non-Coolant Through |
| Shank Width | 25 mm |
| Cutting Application | Cut-Off, Grooving |
| Package Quantity | 1 |
