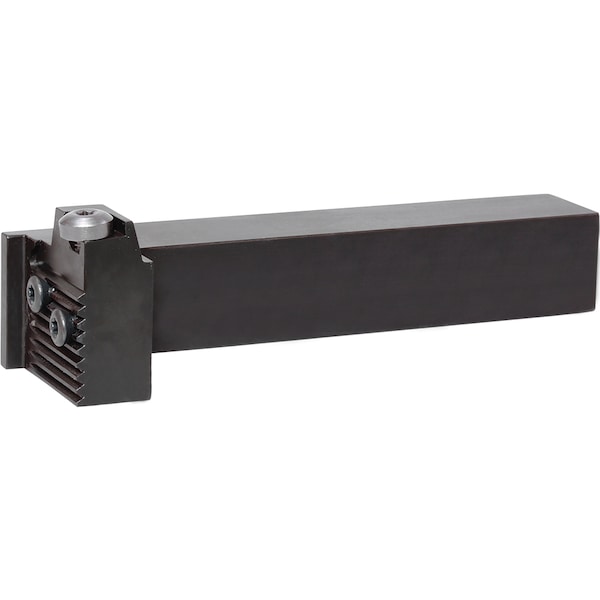

External Grooving Toolholder, KGDSR 16C
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Overall Length | 5.79 in |
| Cutting Direction | Right Hand |
| Shank Shape | Square |

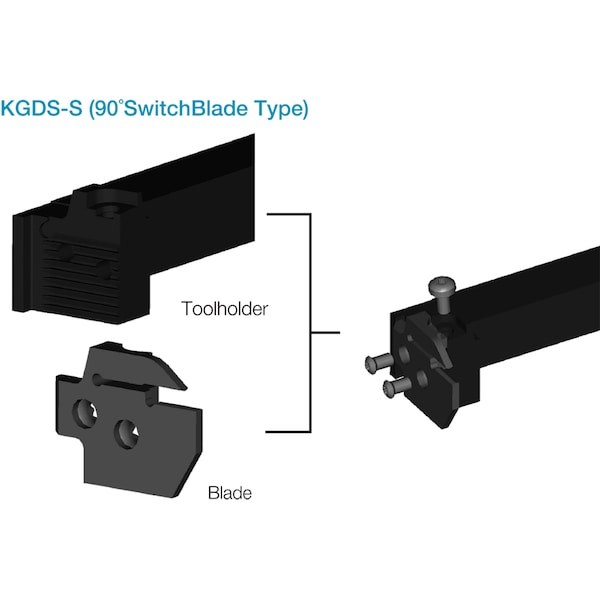

| Features | Adaptable to a Wide Range of Applications by Swapping Out Blades, High Rigidity Switch Blade Style Holder, Various Edge Widths and Cutting Depths Possible by Changing the Blade and Toolholder Combination |
| Shank Height | 1 in |
| ISO Number | KGDSR16C |
| Shank Material | Steel |
| Shank Width | 1 in |
| Toolholder Style | KGDS |
| Cutting Location | External |
| Cutting Application | Cut-Off, Grooving |
| ANSI Code | KGDSR16C |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
