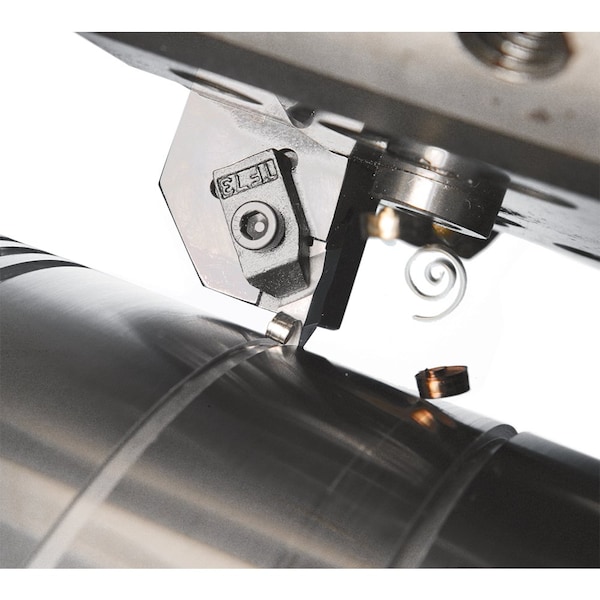

External Grooving Toolholder, KKCL 163C
| Item | Indexable Parting and Grooving Tool Holder |
|---|---|
| Shank Shape | Square |
| Cutting Direction | Left Hand |
| Overall Length | 5 in |
| Features | Rake Angle is Insert Dependent |
| Shank Height | 1 in |
| Shank Width | 1 in |
| Head Length | 1-1/4 in |
| Toolholder Style | KKC |
| ANSI Code | KKCL163C |
| Insert Holding Type | Clamp |
| Cutting Application | Shallow Grooving |
| Cutting Height | 1 in |
| Shank Material | Steel |
| Depth of Cut | 0.21 in |
| Insert Style | KCGP, KCRP, KCG, KCGDP |
| Cutting Location | External |
| Max. Grooving Width | 0.189 in |
| Side-to-Cutting Tip | 1-1/4 in |
| Coolant Fed | Non-Coolant Through |
| ISO Number | KKCL163C |
| Package Quantity | 1 |
