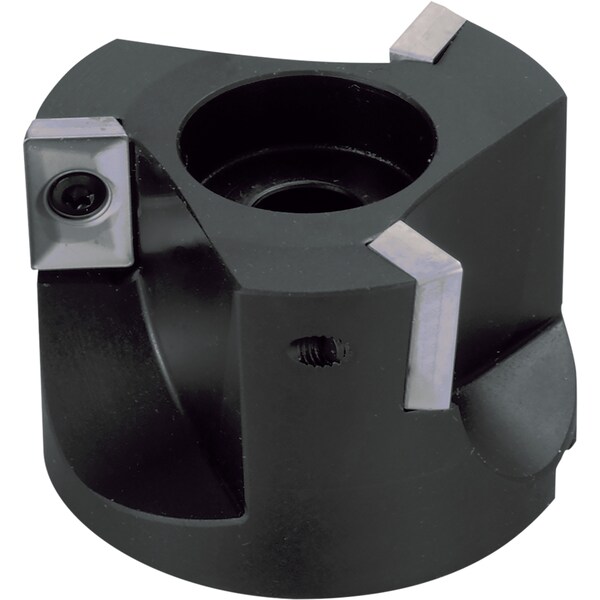

Face Mill, FM 200030RH, FM 2.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 1/2 in |
| Overall Length | 1.3438 in |
| Insert Size | 15T3 |
| Cutting Direction | Right Hand |
| Features | Standard Pitch |
| Coolant Fed | Non-Coolant Through |
| Number of Inserts | 3 |
| Insert Style | XPMT |
| ISO Number | FM200030RH |
| Arbor Dia. | 1 in |
| ANSI Code | FM200030RH |
| Side Cutting Edge Angle | 30 deg |
| Cutting Application | Chamfering, Face Milling, Shoulder Milling |
| Max. Cutting Dia. | 2 in |
| Insert Holding Type | Screw |
| Package Quantity | 1 |
