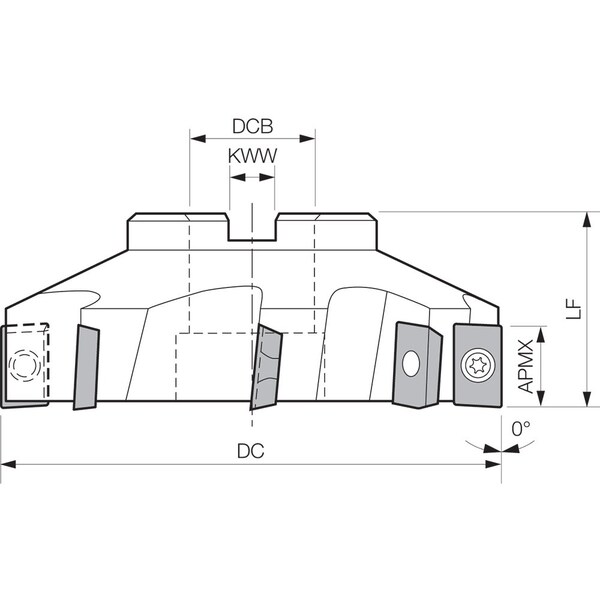

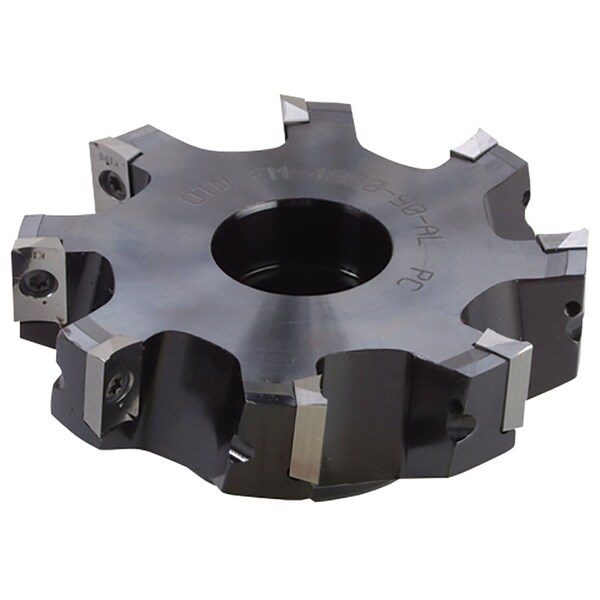

Face Mill, FMAL 2500903, FM-AL 2.5000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.64 in |
| Overall Length | 1.5748 in |
| Cutting Direction | Right Hand |
| Insert Size | 1604 |
| Features | 8 Degrees Max. Ramping Angle, Standard Pitch |
| ANSI Code | FMAL2500903 |
| Coolant Fed | Non-Coolant Through |
| ISO Number | FMAL2500903 |
| Insert Style | APET |
| Number of Inserts | 3 |
| Max. Cutting Dia. | 2-1/2 in |
| Arbor Dia. | 3/4 in |
| Insert Holding Type | Screw |
| Rake | -3 Degrees Radial, 5 Degrees Axial |
| Side Cutting Edge Angle | 90 deg |
| Cutting Application | Aluminum Milling, Face Milling, Ramping, Shoulder Milling, Slotting |
| Package Quantity | 1 |
