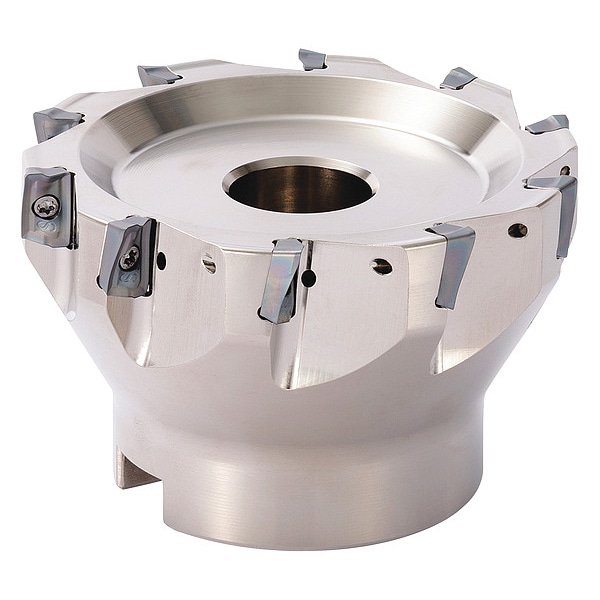

Face Mill, MEC 063R118T, MEC 63.00mm Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 10 mm |
| Overall Length | 50 mm |
| Cutting Direction | Right Hand |
| Insert Size | 11T3 |
| Features | Fine Pitch, Low Cutting Forces and Reduced Chattering for High-Efficiency Milling |
| Insert Style | BDMT, BDGT |
| Coolant Fed | Coolant Through |
| Number of Inserts | 8 |
| Rake | -7 Degrees Radial, 23 Degrees Axial |
| Side Cutting Edge Angle | 90 deg |
| Max. Cutting Dia. | 63 mm |
| Insert Holding Type | Screw |
| ISO Number | MEC063R-11-8T |
| ANSI Code | MEC063R118T |
| Arbor Dia. | 1 in |
| Cutting Application | Face Milling, Helical Milling, Plunge Cutting, Shoulder Milling, Slotting |
| Max. Speed | 20,500 rpm |
| Package Quantity | 1 |
