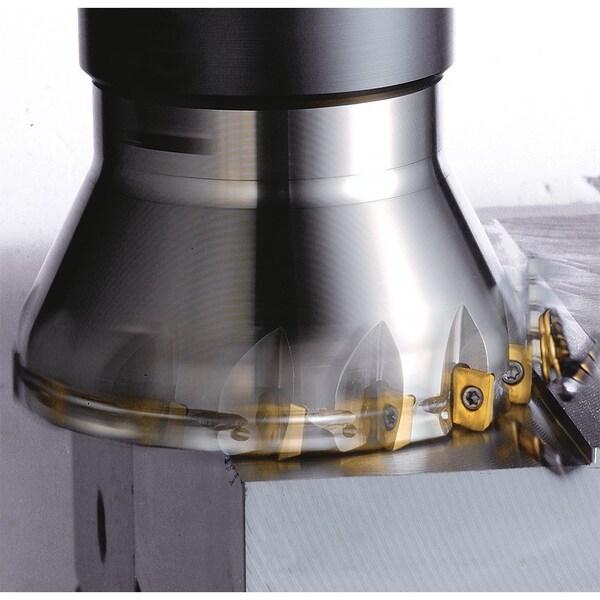

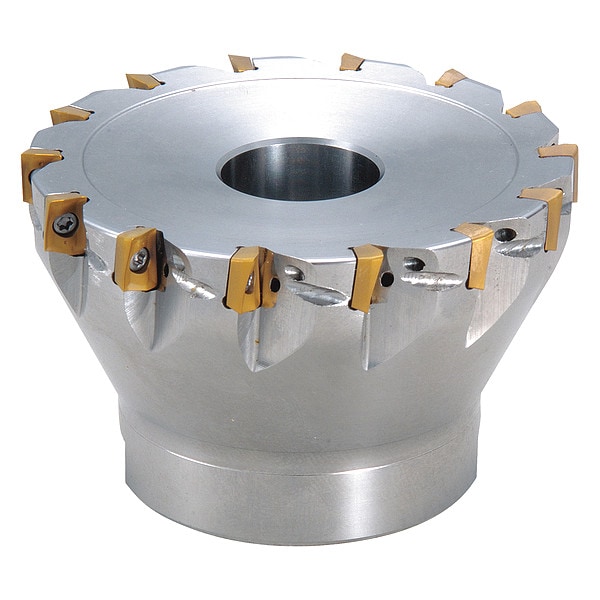

Face Mill, MECX 2000R0712T, MECX 2.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.2362 in |
| Overall Length | 1.5748 in |
| Cutting Direction | Right Hand |
| Insert Size | 0703 |
| Features | Extra Fine Pitch Increases Machining Efficiency with Low Cutting Forces to Make the MECX Ideal for Lower Horsepower Machines |
| Coolant Fed | Coolant Through |

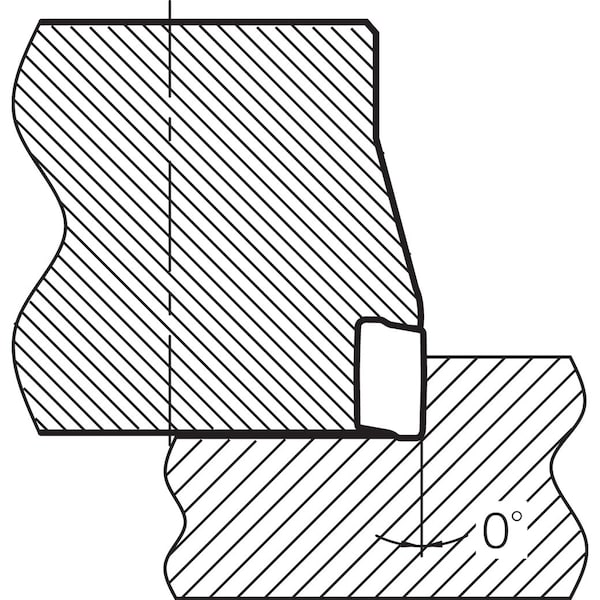

| Side Cutting Edge Angle | 90 deg |
| Max. Speed | 27,700 rpm |
| ANSI Code | MECX2000R0712T |
| Cutting Application | Face Milling, Helical Milling, Shoulder Milling, Slotting |
| Hub Outside Dia. | 1.5748 in |
| ISO Number | MECX2000R-07-12T |
| Insert Style | BDMT |
| Rake | -8.3 Degrees Radial, 7 Degrees Axial |
| Number of Inserts | 12 |
| Insert Holding Type | Screw |
| Arbor Dia. | 3/4 in |
| Max. Cutting Dia. | 2 in |
| Package Quantity | 1 |
