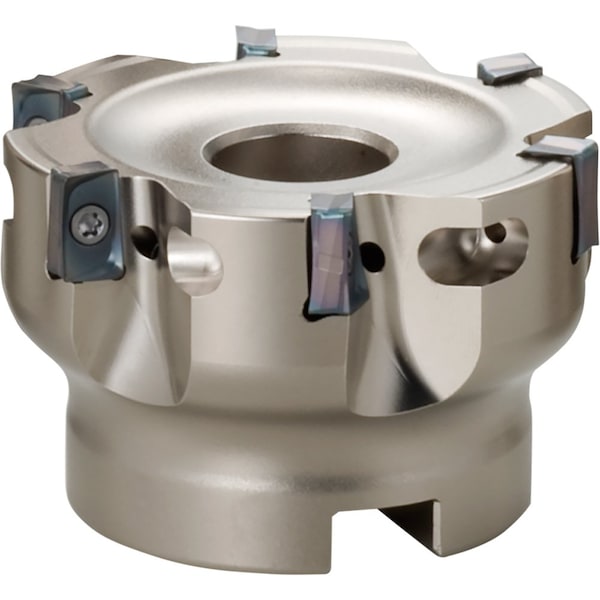

Face Mill, MEW 2000R154T, M-FOUR 2.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.5906 in |
| Overall Length | 1.5748 in |
| Cutting Direction | Right Hand |
| Insert Size | 1505 |
| Features | Double-Sided 4-Edge Inserts, Improved Toolholder Durability and Insert Installation Accuracy, Standard Pitch |
| Cutting Application | Face Milling, Plunge Cutting, Shoulder Milling, Slotting |
| Max. Speed | 16,800 rpm |
| ISO Number | MEW2000R154T |
| Arbor Dia. | 3/4 in |
| Number of Inserts | 4 |
| Insert Style | LOGT, LOMU |
| Insert Holding Type | Screw |
| ANSI Code | MEW2000R154T |
| Side Cutting Edge Angle | 90 deg |
| Rake | -21 Degrees Radial, 10 Degrees Axial |
| Coolant Fed | Coolant Through |
| Max. Cutting Dia. | 2 in |
| Hub Outside Dia. | 1.811 in |
| Package Quantity | 1 |
