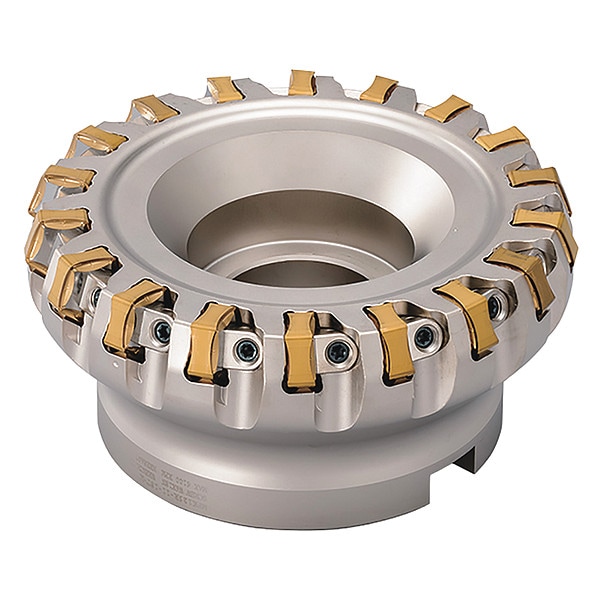

Face Mill, MFK 5000R1112T, MFK 5.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.2362 in |
| Overall Length | 2.4803 in |
| Insert Size | 11... |
| Cutting Direction | Right Hand |
| Features | 10 Usable Cutting Edges per Insert, Double-Sided Inserts with Free Cutting Geometry to Resist Chatter, Fine Pitch, Tough Edge with Low Cutting Forces |
| Min. Cutting Dia. | 5 in |
| Insert Style | PNEA, PNEG, PNMG |
| Insert Holding Type | Wedge Clamp |
| Max. Cutting Dia. | 5.34 in |
| Number of Inserts | 12 |
| Coolant Fed | Non-Coolant Through |
| Hub Outside Dia. | 3-3/4 in |
| Side Cutting Edge Angle | 70 deg |
| Arbor Dia. | 1-1/2 in |
| Rake | -5 Degrees Radial, 15 Degrees Axial |
| ISO Number | MFK5000R-11-12T |
| Cutting Application | Cast Iron Milling, Face Milling |
| ANSI Code | MFK5000R1112T |
| Package Quantity | 1 |
