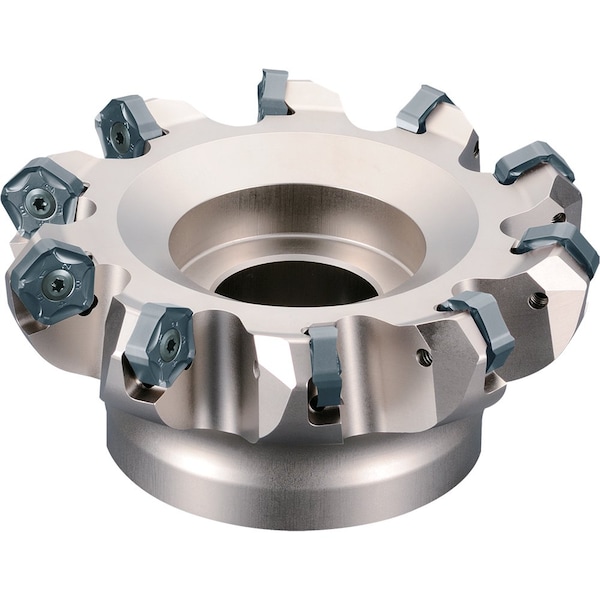

Face Mill, MFPN 453000R5T, MFPN 3.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.2362 in |
| Overall Length | 1.9685 in |
| Cutting Direction | Right Hand |
| Insert Size | 1205 |
| Features | Coarse Pitch, Double-Sided 10-Edge Inserts, Reduced Chattering with Low Cutting Forces Due to Curved Cutting Edge Design, Suppresses Fracturing with Dual Angle Edge Design |
| ANSI Code | MFPN453000R5T |
| Insert Style | PNEU, PNMU |
| Side Cutting Edge Angle | 45 deg |
| Insert Holding Type | Screw |
| Max. Cutting Dia. | 3.315 in |
| Rake | -10 Degrees Radial, 10 Degrees Axial |
| Arbor Dia. | 1 in |
| ISO Number | MFPN453000R5T |
| Coolant Fed | Non-Coolant Through |
| Hub Outside Dia. | 2.2835 in |
| Number of Inserts | 5 |
| Min. Cutting Dia. | 3 in |
| Cutting Application | Chamfering, Face Milling |
| Package Quantity | 1 |
