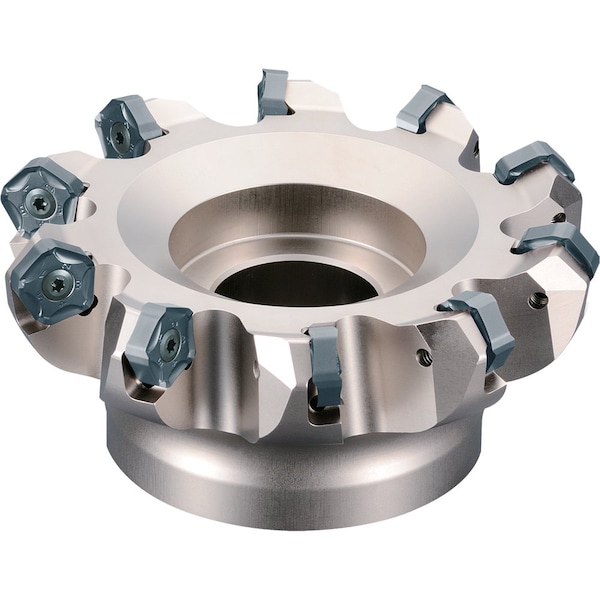

Face Mill, MFPN 456000R8T, MFPN 6.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.2362 in |
| Overall Length | 2.4803 in |
| Insert Size | 1205 |
| Cutting Direction | Right Hand |
| Features | Coarse Pitch, Double-Sided 10-Edge Inserts, Reduced Chattering with Low Cutting Forces Due to Curved Cutting Edge Design, Suppresses Fracturing with Dual Angle Edge Design |
| Coolant Fed | Non-Coolant Through |
| Number of Inserts | 8 |
| ANSI Code | MFPN456000R8T |
| Side Cutting Edge Angle | 45 deg |
| Insert Holding Type | Screw |
| ISO Number | MFPN456000R8T |
| Hub Outside Dia. | 4.0157 in |
| Insert Style | PNEU, PNMU |
| Rake | -6 Degrees Radial, 10 Degrees Axial |
| Max. Cutting Dia. | 6.315 in |
| Cutting Application | Chamfering, Face Milling |
| Min. Cutting Dia. | 6 in |
| Arbor Dia. | 2 in |
| Package Quantity | 1 |
