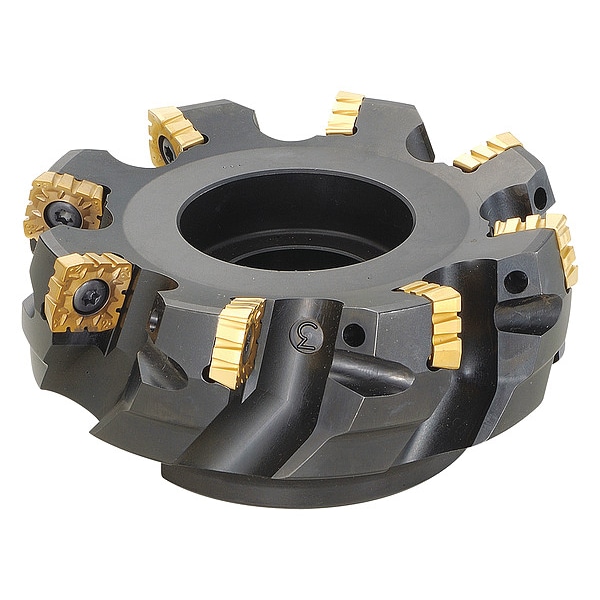

Face Mill, MSRS 153000R6T, MSRS15 3.0000" Cutting Dia
| Item | Indexable Face Mill |
|---|---|
| Depth of Cut | 0.4724 in |
| Overall Length | 1.9685 in |
| Cutting Direction | Right Hand |
| Insert Size | 1806 |
| Features | Fine Pitch, Large Depths of Cut and High Feed Rates, Notched Inserts Reduce Cutting Forces When Entering the Workpiece, Smooth Chip Evacuation Prevents Fracturing Caused by Biting Chips, Stable Machining Without Chattering |
| Number of Inserts | 6 |
| Hub Outside Dia. | 2-1/4 in |
| Insert Style | SPMT |
| Insert Holding Type | Screw |
| ISO Number | MSRS153000R-6T |
| ANSI Code | MSRS153000R6T |
| Side Cutting Edge Angle | 75 deg |

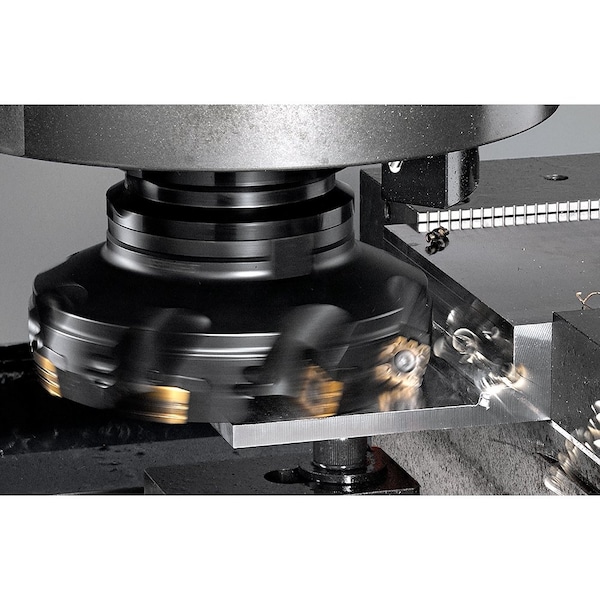

| Cutting Application | Face Milling, Heavy Milling |
| Coolant Fed | Non-Coolant Through |
| Arbor Dia. | 1 in |
| Min. Cutting Dia. | 3 in |
| Rake | -9 Degrees Radial, 9 Degrees Axial |
| Max. Cutting Dia. | 3.27 in |
| Package Quantity | 1 |
