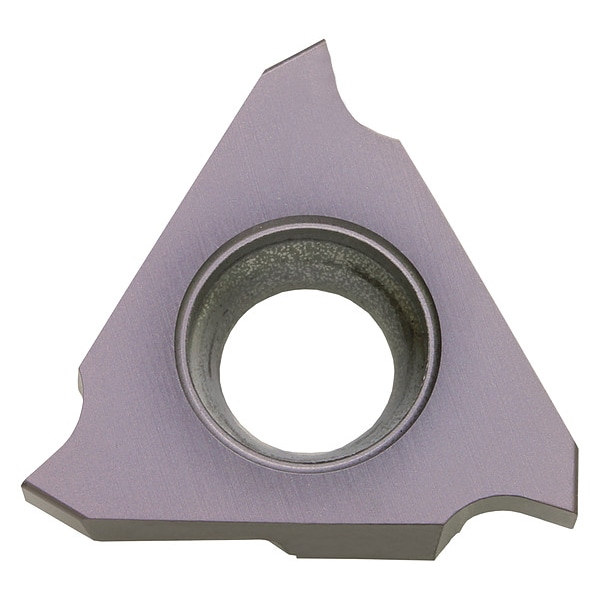

Grooving Insert, GBA 32R175020 PR1215 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | No |
| Cutting Direction | Right Hand |
| Corner Radius | 0.2 mm |
| ISO Number | GBA32R175-020 |
| Rake | Positive |
| Thickness | 1/8 in |
| Manufacturer Grade | PR1215 |
| Inscribed Circle | 3/8 in |
| Secondary Material Application | Stainless Steel |
| For Toolholder | KGBAR-16, KGBAR-3, KGBASL-16, KGBASL-3, KIGBAL-16, KIGBAL-3 |
| Max. Grooving Width | 1.75 mm |
| Cutting Application | Grooving |
| Finish - Machining | Megacoat |
| Insert Holding Type | Clamp |
| Measurement System | Metric |
| Primary Material Application ISO Code | P |
| Secondary Material Application ISO Code | M |
| Insert Size | 32 |
| Number of Cutting Edges | 3 |
| Coating Process | PVD |
| ANSI Code | GBA32R175020 |
| Depth of Cut | 2.5 mm |
| Hole Type | With Hole |
| Cutting Location | External |
| Primary Material Application | Steel |
| Material - Machining | Carbide |
| Package Quantity | 1 |
