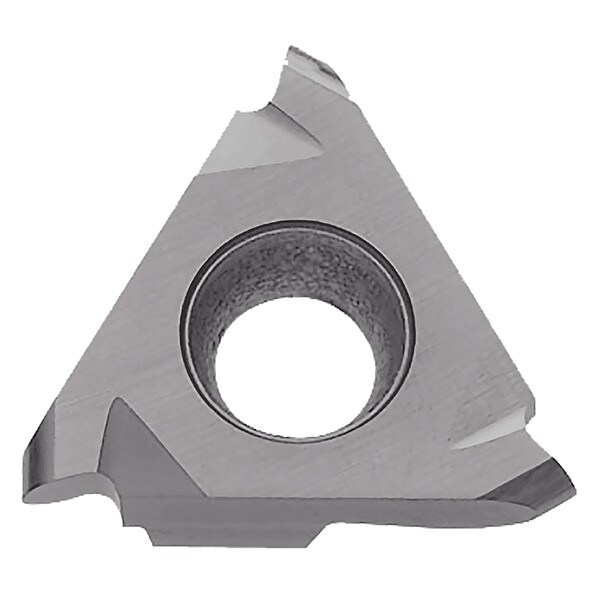

Grooving Insert, GBA 43L100R005 KW10 Grade Uncoated Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | No |
| Cutting Direction | Left Hand |
| ISO Number | GBA43L100R005 |
| Rake | Positive |
| Corner Radius | 0.05 mm |
| Thickness | 3/16 in |
| Finish - Machining | Bright |
| Cutting Location | External |
| Insert Size | 43 |
| Cutting Application | Grooving |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Non-Ferrous |
| Primary Material Application ISO Code | N |
| Material - Machining | Carbide |
| Insert Holding Type | Clamp |
| Manufacturer Grade | KW10 |
| Measurement System | Metric |
| ANSI Code | GBA43L100R005 |
| Number of Cutting Edges | 3 |
| For Toolholder | KGBAL-4-15, KGBAL22-15, KGBASR-4-15, KGBASR22-15, KIGBAR-22, KIGBAR-4 |
| Max. Grooving Width | 1 mm |
| Inscribed Circle | 1/2 in |
| Hole Type | With Hole |
| Depth of Cut | 2 mm |
| Package Quantity | 1 |
