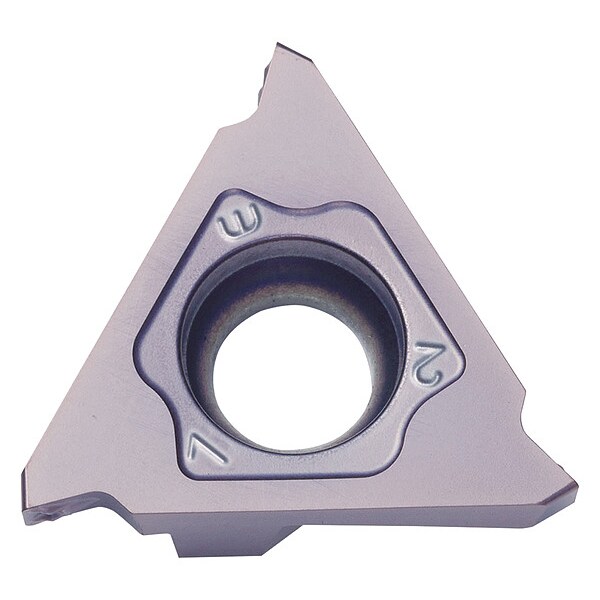

Grooving Insert, GBA 43L200020GM PR1215 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Left Hand |
| Corner Radius | 0.2 mm |
| Rake | Positive |
| ISO Number | GBA43L200-020GM |
| Thickness | 3/16 in |
| Cutting Location | External |
| For Toolholder | KGBAL-4-15, KGBAL22-15, KGBASR-4-15, KGBASR22-15, KIGBAR-22, KIGBAR-4 |
| ANSI Code | GBA43L200020GM |
| Secondary Material Application | Stainless Steel |
| Number of Cutting Edges | 3 |
| Manufacturer Grade | PR1215 |
| Hole Type | With Hole |
| Max. Grooving Width | 2 mm |
| Secondary Material Application ISO Code | M |
| Insert Holding Type | Clamp |
| Insert Size | 43 |
| Chip-Breaker Style | Molded |
| Measurement System | Metric |
| Material - Machining | Carbide |
| Cutting Application | Grooving |
| Finish - Machining | Megacoat |
| Coating Process | PVD |
| Chip-Breaker Code | GM |
| Inscribed Circle | 1/2 in |
| Primary Material Application | Steel |
| Depth of Cut | 3.5 mm |
| Primary Material Application ISO Code | P |
| Package Quantity | 1 |
