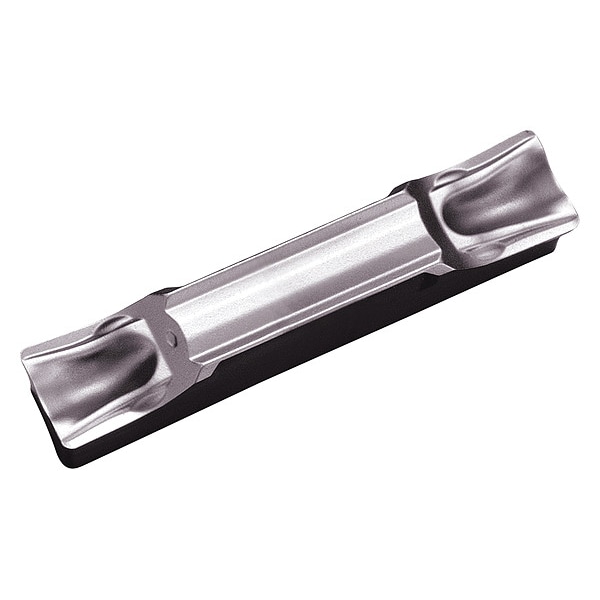

Grooving Insert, GDFM 4020N040DM PR1215 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| ISO Number | GDFM4020N040DM |
| Rake | Positive |
| Overall Length | 20 mm |
| Corner Radius | 0.4 mm |
| Measurement System | Metric |
| Cutting Application | Deep Grooving, Traversing |
| Cutting Height | 4.5 mm |
| Coating Process | PVD |
| Primary Material Application | Steel |
| ANSI Code | GDFM4020N040DM |
| Secondary Material Application | Stainless Steel |
| Insert Size | 4020 |
| Number of Cutting Edges | 2 |
| Insert Holding Type | Clamp |
| Secondary Material Application ISO Code | M |
| Finish - Machining | Megacoat |
| Primary Material Application ISO Code | P |
| Chip-Breaker Code | DM |
| Material - Machining | Carbide |
| Manufacturer Grade | PR1215 |
| For Toolholder | KGDFL-4...-C, KGDFR-4...-C |
| Max. Grooving Width | 4 mm |
| Hole Type | No Hole |
| Package Quantity | 1 |
