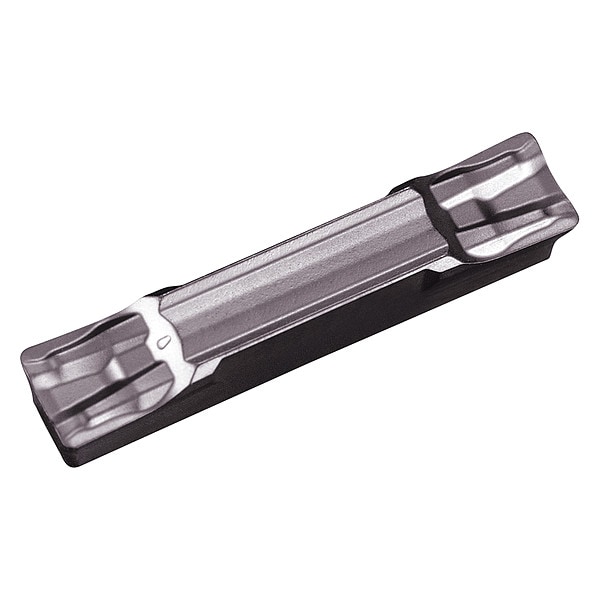

Grooving Insert, GDFM 4020N040GM PR1225 Grade PVD Carbide
| Item | Indexable Parting and Grooving Insert |
|---|---|
| Chip-Breaker | Yes |
| Cutting Direction | Neutral |
| ISO Number | GDFM4020N040GM |
| Corner Radius | 0.4 mm |
| Overall Length | 20 mm |
| Rake | Positive |
| Material - Machining | Carbide |
| Cutting Application | Grooving, Traversing |
| Insert Size | 4020 |
| Hole Type | No Hole |
| Manufacturer Grade | PR1225 |
| Chip-Breaker Code | GM |
| Primary Material Application ISO Code | P |
| Finish - Machining | Megacoat |
| Coating Process | PVD |
| Cutting Height | 4.5 mm |
| Max. Grooving Width | 4 mm |
| For Toolholder | KGDFL-4...-C, KGDFR-4...-C |
| Primary Material Application | Steel |
| ANSI Code | GDFM4020N040GM |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Number of Cutting Edges | 2 |
| Insert Holding Type | Clamp |
| Measurement System | Metric |
| Package Quantity | 1 |
